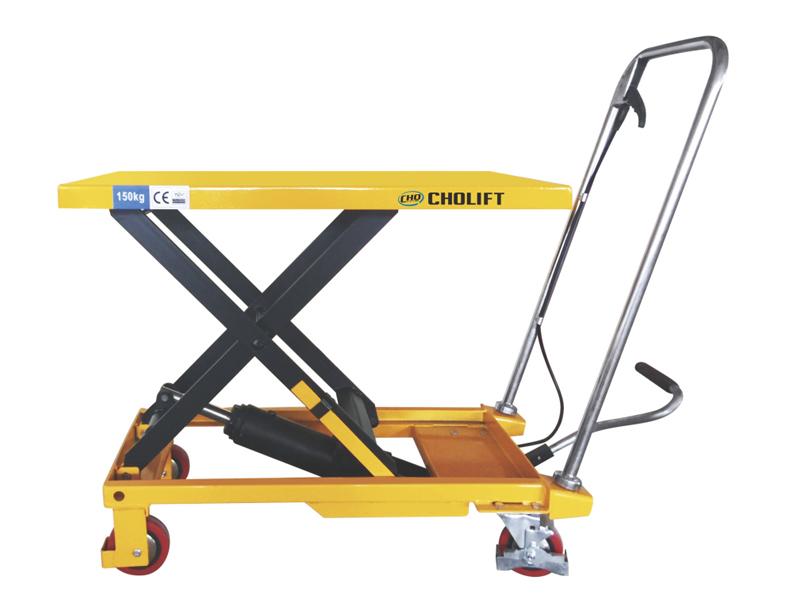

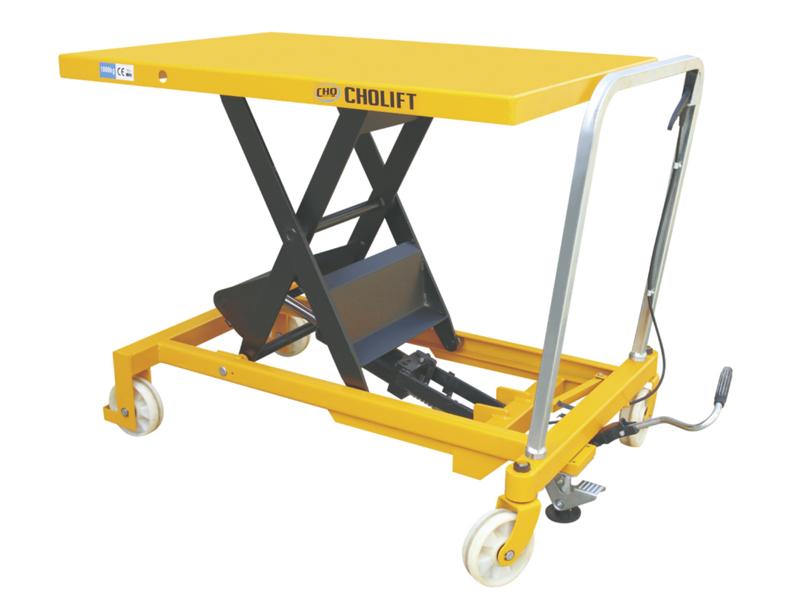

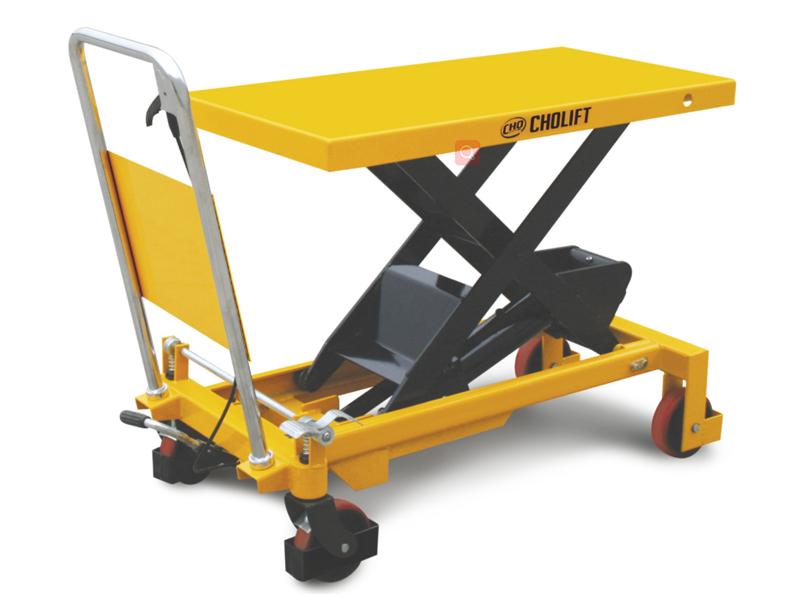

The SPA series hydraulic lift table cart not only lifts materials, but also transports goods throughout a factory. Multiple platform sizes are available within this series, and customers can choose between a single scissor or dual scissor type.
Basic parameters
- Load capacity: 150kg-1000kg
- Lifting height: 740mm---1000mm
Features

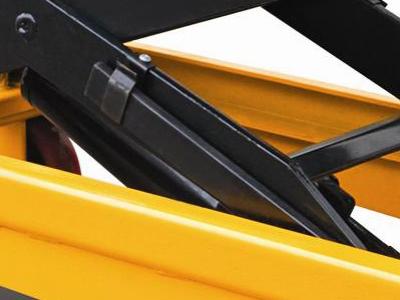

- The reliable hydraulic system guarantees the long service life.
- Electric control of the ascent and descent ensures an easy operation without rotating the fixed handle.
- The distance between every movable part is in full accordance with CE standards, ensuring user safety.
- Overload protection.
- The stable ascent and descent is guaranteed regardless of the load weight and size, with no impact and a safe operation.

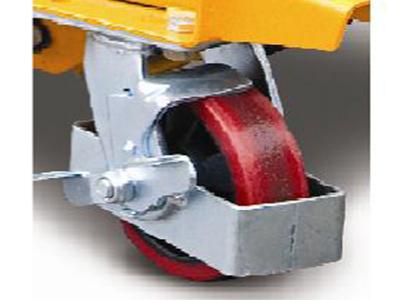

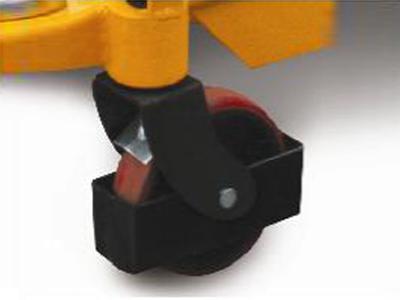

- The rear wheel is equipped with a protective wheel brace that will automatically stop in an emergency.
- The lifting can be completed by hand or pedal.
- The hand control valve guarantees the accurate operation.
Technical parameters
Model | | SPA150 | SPA300 | SPA500 | SPA1000 | SPA1500 | SPK1000 |
Load capacity/rated load | kg | 150 | 300 | 500 | 1000 | 1500 | 1000 |
Max. lift height | h12 (mm) | 740 | 900 | 900 | 1000 | 1000 | 1000 |
Min. height of table | h13 (mm) | 225 | 340 | 340 | 420 | 420 | 425 |
Lifting height | h3 (mm) | 515 | 560 | 560 | 580 | 580 | 575 |
Table size | lxb5xs(mm) | 700*450*35 | 855*500*50 | 855*500*50 | 1000*510*55 | 1220*610*60 | 1200*800*55 |
Foot pedal cycles to max height | | ≤25 | ≤32 | ≤45 | ≤55 | ≤70 | ≤55 |
Service weight | kg | 44 | 82 | 87 | 115 | 135 | 135 |
Carton size | mm | 860*485*300 | 985*510*350 | 985*510*350 | 1170*520*420 | 1420*625*420 | 1400*810*430 |
