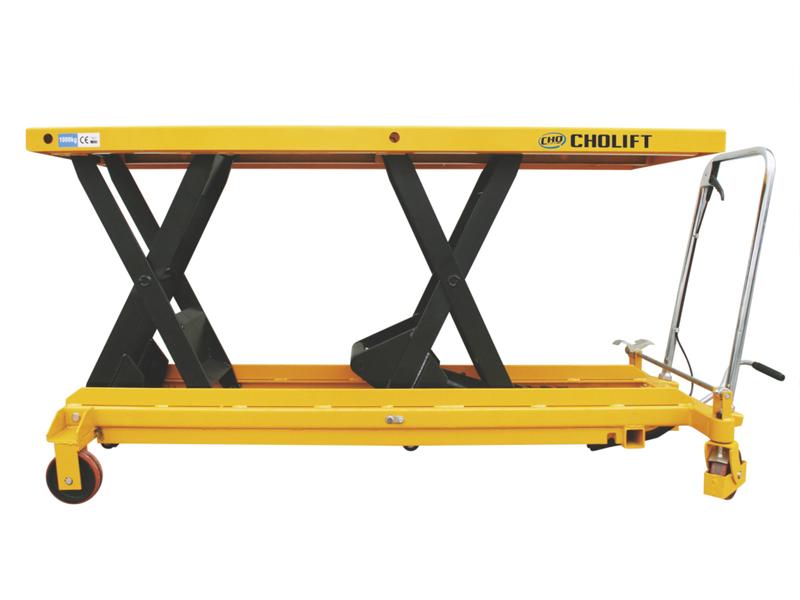

Hydraulic Horizontal Double Scissor Lift Table
The tandem two scissor fork arm design ensures the SPT500 horizontal double scissor lift table has a higher load capacity at the same lifting height.
Basic parameters
- Load capacity: 500kg
- Lifting height: 900mm
Features
- The reliable hydraulic system guarantees the long service life.
- Electric controls control ascent and descent, ensuring a highly efficient, easy operation.
- The distance between every movable part is in full accordance with CE requirements, ensuring user safety.
- Overload protection.
- The stable ascent and descent is guaranteed regardless of the load weight and size, with no impact and a safe operation.
- The lifting can be carried out either by hand or pedal.
- The hand control valves guarantees an accurate operation.
Technical parameters
| Model | SPT500 | |
| Rated capacity | kg | 500 |
| Max lift height | h12(mm) | 900 |
| Min height of table | h13(mm) | 310 |
| Lifting height | h3（mm) | 590 |
| Table size | 1×b5xs（mm) | 1600×800×50 |
| Foot pedal cycles to max height | ≤55 | |
| Service weight | kg | 135 |
| Carton size | mm | 1800×810×320 |
| Total height | h14(mm) | 9710 |
| Tyre size | d(mm) | φ127 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
