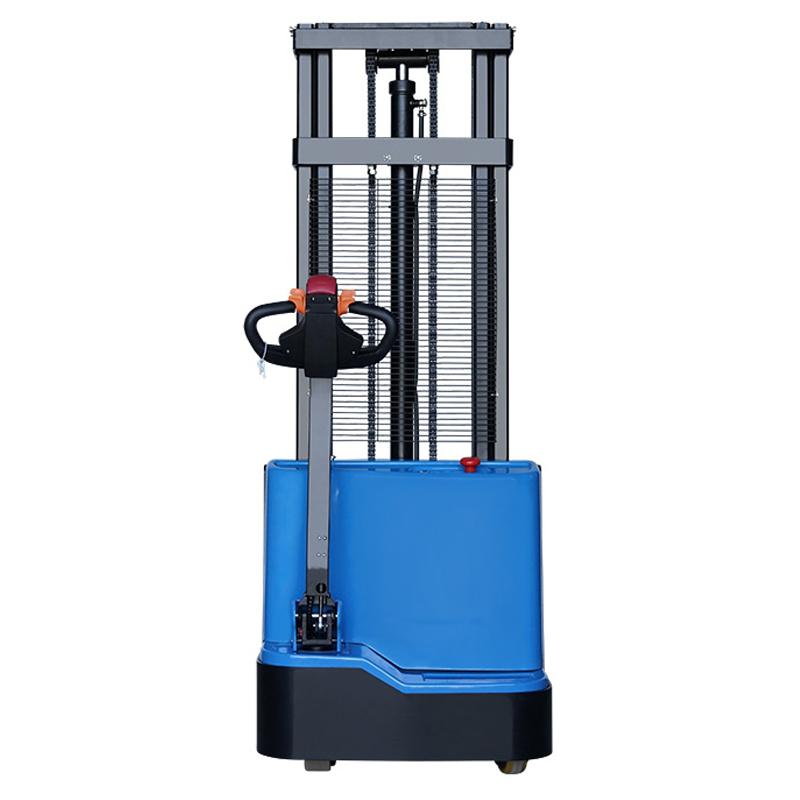

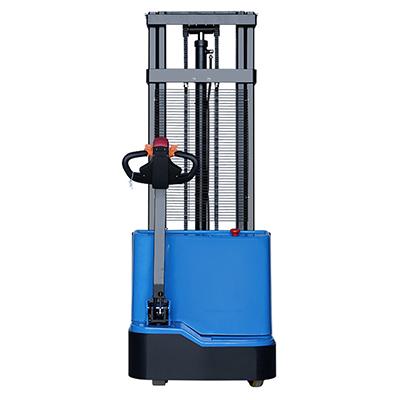

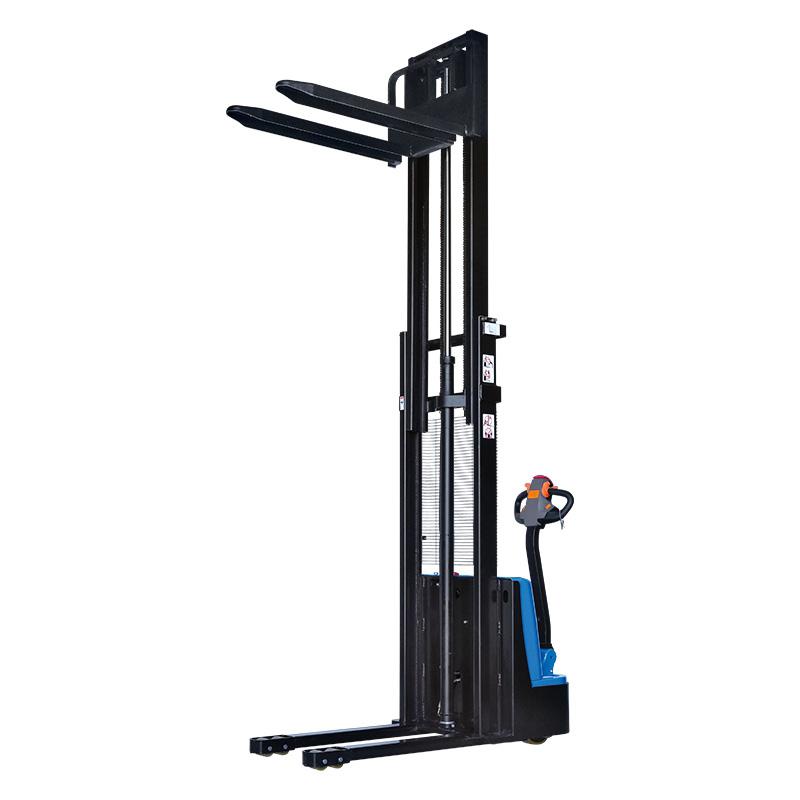

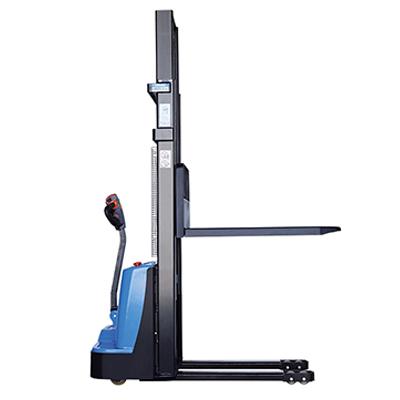

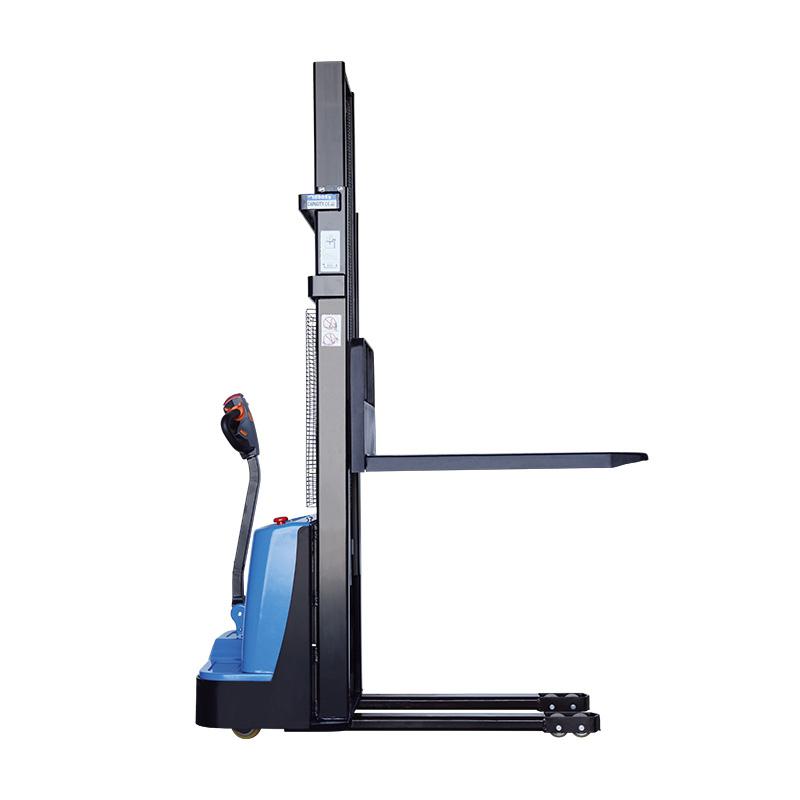

QDA-E Electric Pallet Stacker
Providing enhanced efficiency and durability, the QDA-E electric pallet stacker is a wonderful piece of equipment for indoor goods handling. With a reasonable investment in this equipment, you will see outstanding results.
Basic parameters
- The maximum load capacity: 1.5T
- Lifting height: 1600/2500/3000/3300/3500mm
- The length of pallet fork: 1070mm
Features

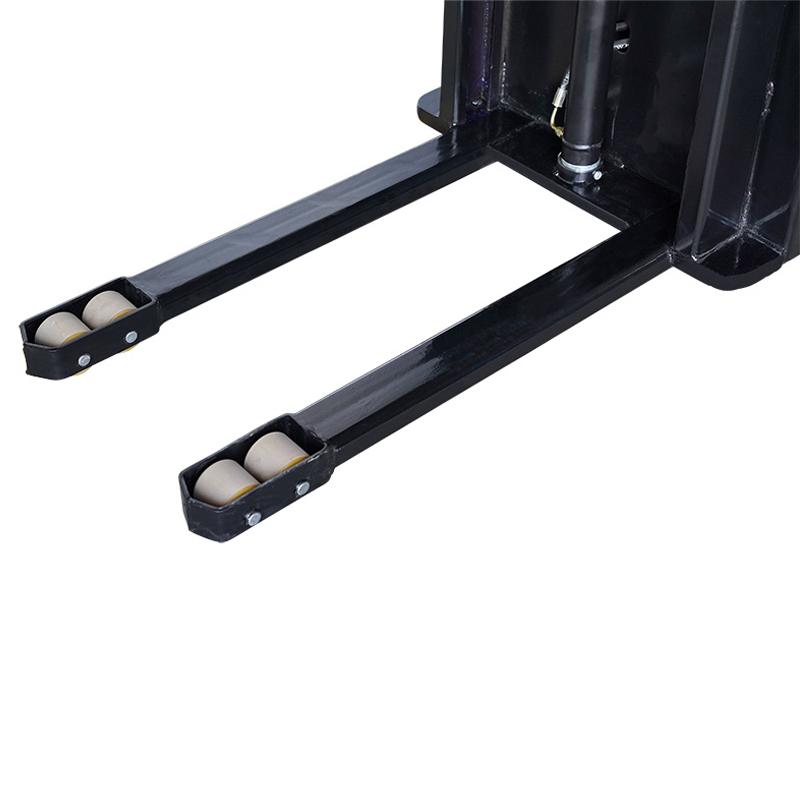

- The electric pallet stacker is equipped with 4 wheels for added durability and therefore safety.
- A C-type mast is made of excellent alloy steel whose stiffness is 30% higher than that of carbon steel.

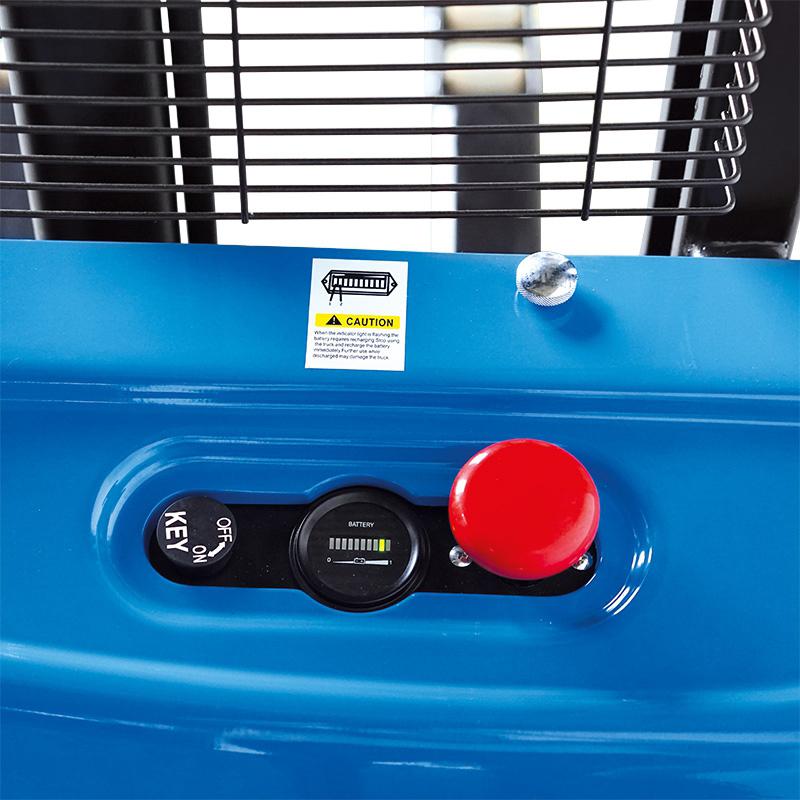

- High capacity sealed battery can be used for long periods of time without any maintenance and it doesn’t need added distilled water or other liquids throughout its service lifetime.
- Its continuously variable speed control unit can meet the speed requirements of different warehouse operations.
- Reasonable layout of parts and circuit lines provides added convenience during maintenance.
Technical parameters
| Model | QDA10E | QDA12E | QDA15E | |
| Drive type | Battery | |||
| Operation type | Walkie | |||
| Rated capacity | Q(kg) | 1000/1200/1500 | ||
| Load center | c(mm) | 600 | ||
| Service weight | kg | 500-700 | ||
| Wheels material | Polyurethane | |||
| Max. lift height | h3(mm) | 1600/2500/3000/3500 | ||
| Lowered mast height | h1(mm) | 2080/1830/2080/2330 | ||
| Extended mast height | h4(mm) | 2050/2950/3450/3950 | ||
| Lowered fork height | h13(mm) | 85 | ||
| Overall length | l1(mm) | 1750 | ||
| Overall width | b1(mm) | 790 | ||
| Fork size | S/e/l(mm) | 60/142/1070 | ||
| Fork width | b5(mm) | 570/660 | ||
| Ground clearance | m2(mm) | 30 | ||
| Turning radius | Wa(mm) | 1390 | ||
| Traveling speed, laden/unload | Km/h | 3.5/4 | ||
| Lifting speed, laden/unload | m/s | 0.1/0.2 | ||
| Descending speed, laden/unload | m/s | 0.12/0-0.1 | ||
| Max. gradient, laden/unload | % | 3/10 | ||
| Brake | Electromagnetic brake | |||
| Drive motor power | kW | 0.75 | ||
| Lift motor power | kW | 2 | ||
| Battery voltage/rated capacity | V/Ah | 2x12/75(120) | ||
| Battery weight | kg | 36 | ||
| Noise level at operator's ear, according to DIN12053 | dB(A) | < 70 | ||
Video
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
