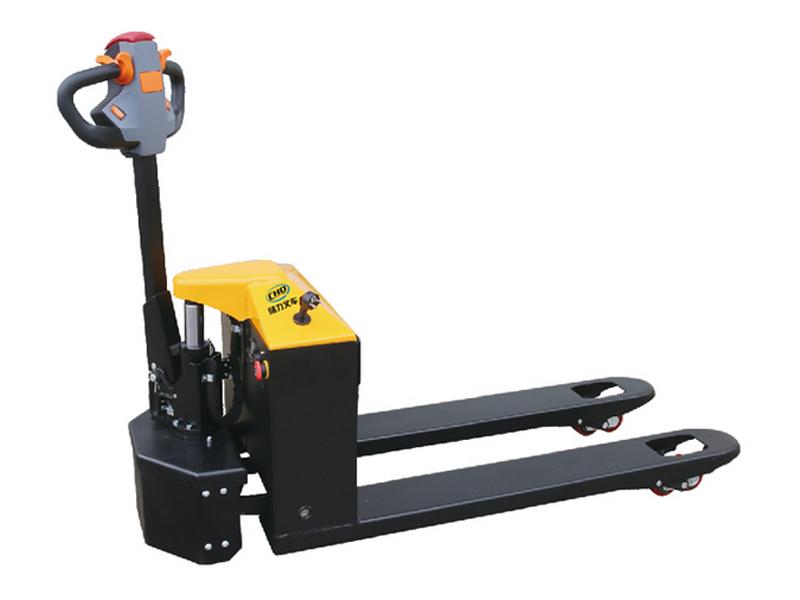

QBA15-Ⅱ Walkie Pallet Jacks

QBA15-Ⅱ Walkie Pallet Jacks

The QBA15-II walkie pallet jack is manually pushed with power assistance and offers outstanding lifting strength. It operates with high efficiency, safety, smoothness, and great simplicity.

Features

Reasonable structural design that enables convenient disassembly and easy maintenance. It will be the new standard of small pallet jacks.
The pallet fork is formed integrally and provides high strength.
High capacity sealed battery can be used for long periods of time without any maintenance and it does not require the addition of distilled water or other liquids during its service life.
Maintenance-free batteries with a built-in charger.

Technical parameters

Model	QBA15 Ⅱ
Features	Rated capacity		Q(kg)	1500
	Load centre distance		c	500
Weight	Service weight including battery		kg	210
Wheel chassis	Wheel size	Steer wheel	mm	Φ210×70
		Load wheel	mm	Φ80×93/70	Φ74×93/70
	Wheel layout			Three-point support
	Tread, rear		b11（mm）	518
Dimension	Max. lift height		h3（mm）	195
	Height, fork lowered		h13（mm）	85/75
	Overall length		l1（mm）	1670
	Overall width		b1（mm）	680
	Fork dimension		s/e/l（mm）	53/160/1150
	Fork width		b5（mm）	550/685
	Turning radius		Wa（mm）	1470
	Height drawbar in driving position max./min.		h14（mm）	1220/680
Capability	Traveling speed, laden/unladen		Km/h	3.5/4
	Max. gradeability, laden/unladen		%	3/10
Motor	Drive motor power		kw	0.75
	Lift motor power		kw	0.8
	Battery voltage/rated capacity		V/Ah	24/75

Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
