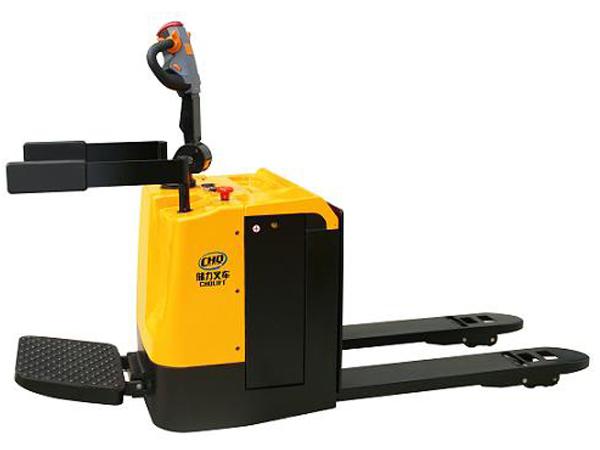

Rider Pallet Jack
The rider pallet jack was specially designed for the long distance handling of heavy goods in warehouse and factory applications. It allows workers to efficiently work, lifting a maximum weight of 3T.

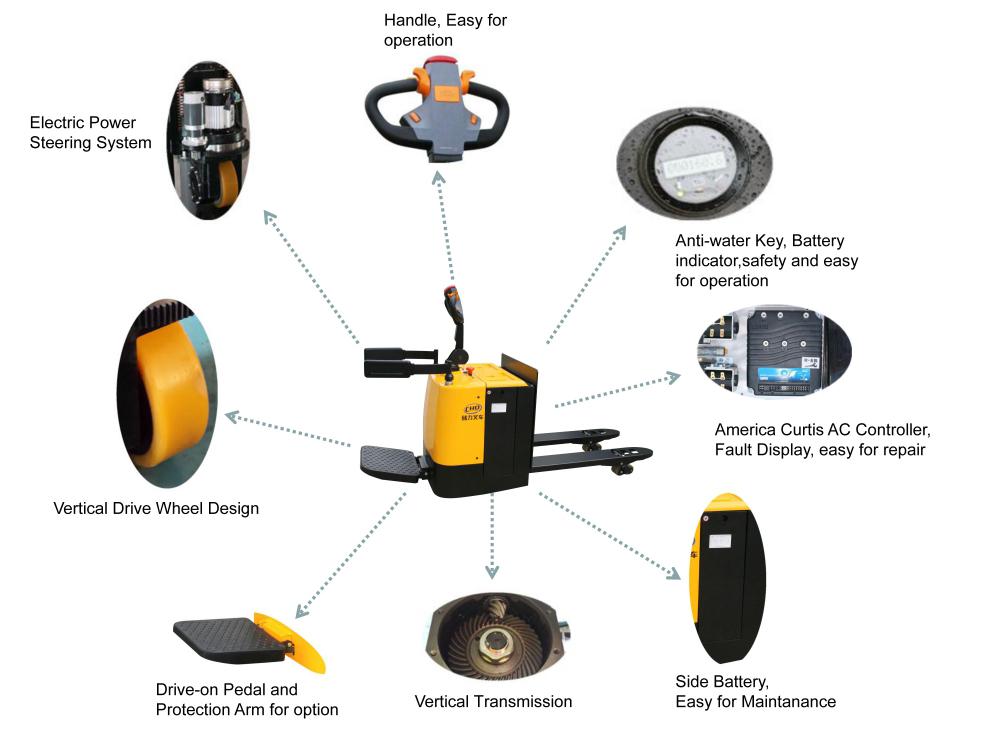

Features
- High quality hydraulic system operates with low noise and vibration. It can guarantee stable ascending and descending speed.
- Electronic limit switch enables accurate control over the maximum lifting height to prevent damaging the motor.
- Multiway valve controls left, right, forward, and backward movement. The forward and backward tilting speed can be easily adjusted.
- Emergency reverse driving and emergency power off functions for added safety.
- Multi-functional handle design can save both time and labor. It is convenient to operate with both hand and all operation can be realized using the handle.
Technical parameters
| Features | Model | QBA | |
| Drive: electric(storage battery), diesel, gasoline, fuel gas | Electric | ||
| Operating (Manual, Walking, Stand driving, seat driving ,Order picking) | Stand driving | ||
| Rated capacity | Q(kg) | 2000 | |
| Load center distance | c(mm) | 600 | |
| Center of drive axle to fork | x(mm) | 800 | |
| Wheelbase | Y(mm) | 1310/1360 | |
| Weight | Service weight(with battery) | kg | 700 |
| Wheel chassis | Wheels (rubber, high elasticity, pneumatic tyre, polyurethane wheel) | polyurethane | |
| Steer wheel size | Φ248×75 | ||
| Load wheel size | Φ80×80 | ||
| Additional wheel | Φ115×50 | ||
| Wheel number, steer wheel/load wheel (x = driving wheel) | 1X+2/4 | ||
| Tread, front | b10(mm) | 560 | |
| Tread, rear | b11(mm) | 355/500 | |
| Dimension | Max. lift height | h3(mm) | 120 |
| Height, fork lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 1850/1900 | |
| Overall width | b1(mm) | 754 | |
| Fork dimension | S/e/l(mm) | 55×185×1150(1220) | |
| Fork width | b5(mm) | 550/685 | |
| Ground clearance | m2(mm) | 30 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2380 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2260 | |
| Turning radius | Wa(mm) | 1520 | |
| Capability | Traveling speed, laden/unladen | Km/h | 5/6 |
| Lifting speed, laden/unladen | m/s | 0.06/0.08 | |
| Descending speed, laden/unladen | m/s | 0.05/0.045 | |
| Max. gradeability, laden/unladen | % | 8/10 | |
| Traveling brake | Electromagnetic brake | ||
| Motor | Driving motor power | kW | 1.5 |
| Lifting motor power | kW | 2.0 | |
| Battery voltage/rated capacity | V/Ah | 24/210(280) | |
| Battery weight | Kg | 210(280) | |
| Battery dimension（L×W×H） | mm | 650×245×520 | |
| Noise level at operator's ear, according to DIN12053 | dB(A) | 70 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
