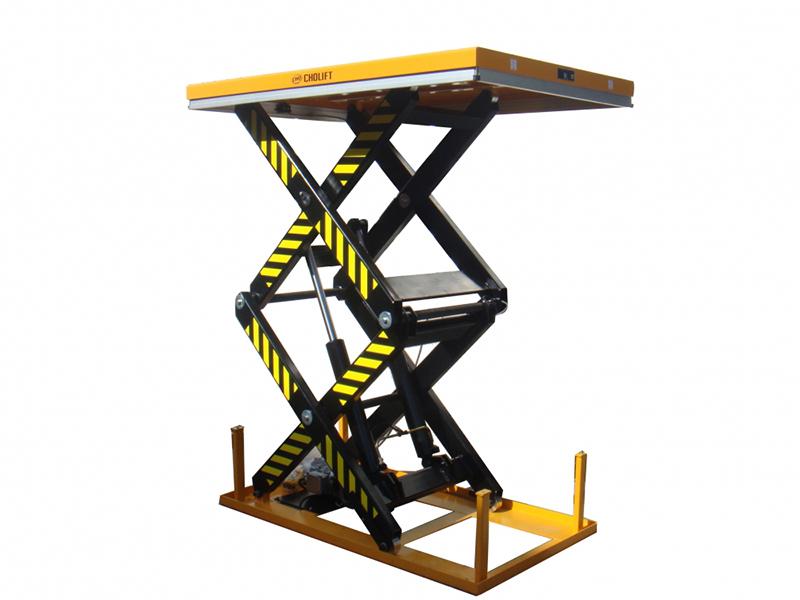

The dual scissor lift table is the perfect lifting solutions for heavy duty, large volume applications.

Basic parameters

Load capacity: 1T-4T
Lifting height: 1780-2050mm
The min. platform size: 1300*850mm
The max. Platform size: 1700*1200mm

Features

The reliable hydraulic system guarantees the long service life.
Electric controls are responsible for the ascent and descent, ensuring a highly efficient, easy operation.
The base is fixed on the ground, ensuring a stable ascent and descent.
Overload protection.
The stable ascent and descent is guaranteed regardless of the load size and weight, with no impact and a safe operation.
The lift table is equipped with protection devices to ensure safe operation and an automatic stop when obstacles are encountered.

Technical parameters

Model (double scissors)		DGS1000	DGS2000	DGS4000
Load capacity/rated load	kg	1000	2000	4000
Max. lift height	mm	1780	1780	2050
Min. height of table	mm	305	360	400
Table size	mm	1300*850	1300*850	1700*1200
Service weight	kg	210	295	520
Base size	mm	1250*785	1250*785	1600*900
Rise time	s	35-45	35-45	55-65
Power supply	V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
