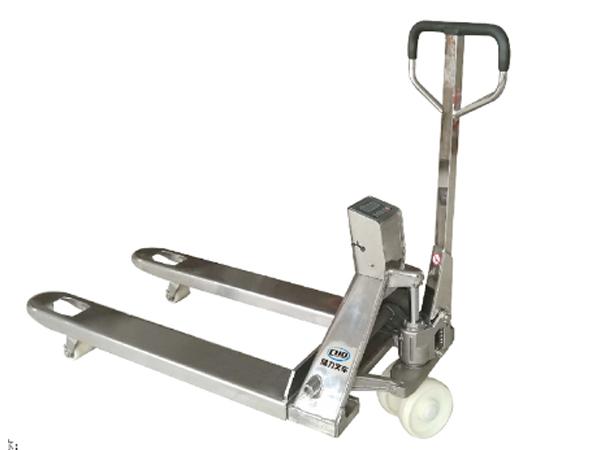

Stainless Steel Pallet Jack with Scale
Made using stainless steel, Cholift’s SBC-S pallet jack is specially designed for corrosive environments and other applications with strict hygienic requirements. The pallet truck with a digital scale allows for load weighing on the spot for a maximum efficiency.
Technical parameters
| Model | SBC(SBC-S) | SBC-P | SBC-E | |
| Load capacity | kg | 2000 | 2000 | 2000 |
| Steer wheel size | mm | φ180×50 | φ180×50 | φ180×50 |
| Load wheel size | mm | φ70×60 | φ70×60 | φ70×60 |
| Lifting height | h3(mm) | 190 | 190 | 190 |
| Lowered height | h13（mm) | 80 | 80 | 80 |
| Overall length | l1(mm) | 1561/1631 | 1561/1631 | 1561/1631 |
| Fork width | mm | 550/680 | 550/680 | 550/680 |
| Fork length | mm | 1150 | 1150 | 1150 |
| Turning radius | mm | 1365/1435 | 1365/1435 | 1365/1435 |
| Battery | V/Ah | 6V/2.5Ah | 6V/2.5Ah | Three AA batteries |
| Height of drawbar in driving position max. | h14(mm) | 1200 | 1200 | 1200 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
