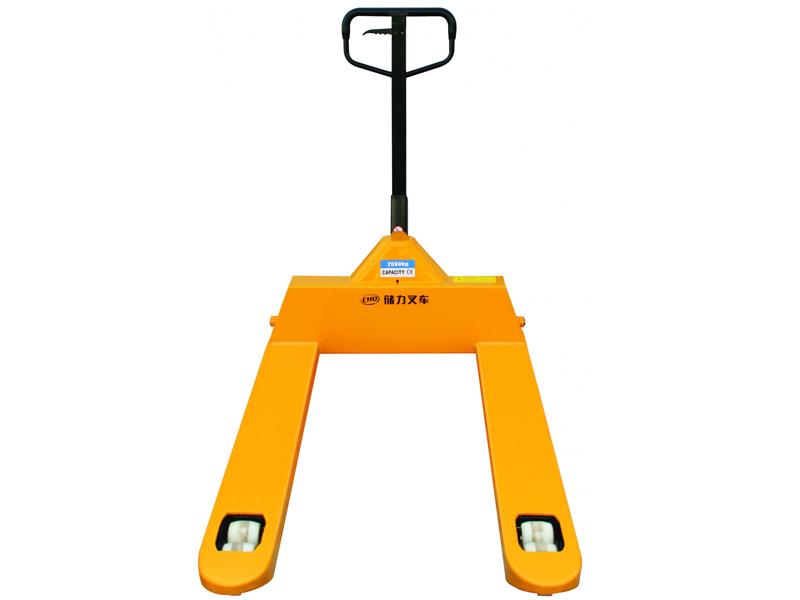

Extra Wide Pallet Truck
Extra wide pallet trucks are ideal for transporting high volume goods.
Basic parameters
- Capacity: 1T, 1.5T, 2T
- Lift height: 1200mm, 1000mm, 800mm
- Fork length: 1220mm, 1150mm
Features
- A one-piece cast hydraulic pump ensures no looseness and no leakage.
- The extra wide pallet truck is suitable for a variety of environments with a traditional service life of 3 to 5 years.
- Made of a high-strength alloy steel, it features a large load capacity.
- Set active safety valve to avoid the overload use.

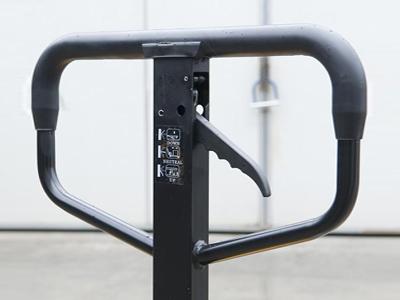

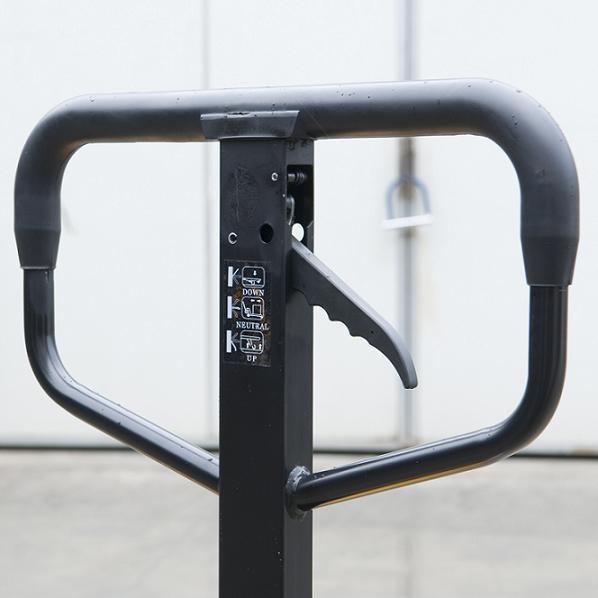

- The humanized design with a standard foot pedal and guide design ensures an easy operation, high efficiency and lower labor intensity.
Technical parameters
| Model | SBK | |
| Load capacity/rated load | Q(kg) | 1000/1500/2000 |
| Load center distance | c(mm) | 500 |
| Net weight | kg | 80-120 |
| Steer wheel size | mm | Φ180*50 |
| Load wheel size | mm | Φ80*70/Φ74*70 |
| Lifting height | h3(mm) | 200/190 |
| Height of drawbar in driving position max. /min. | h14(mm) | 1234/1224 |
| Lowered height | h13(mm) | 85/75 |
| Overall length | l1(mm) | 1534/1604 |
| Fork dimensions | s/e/l | 54/160/1150 |
| Distance between fork-arms | b5(mm) | 800/1000/1200 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
