High Performance and Energy Efficient 4 Wheel Electric Forklift Trucks

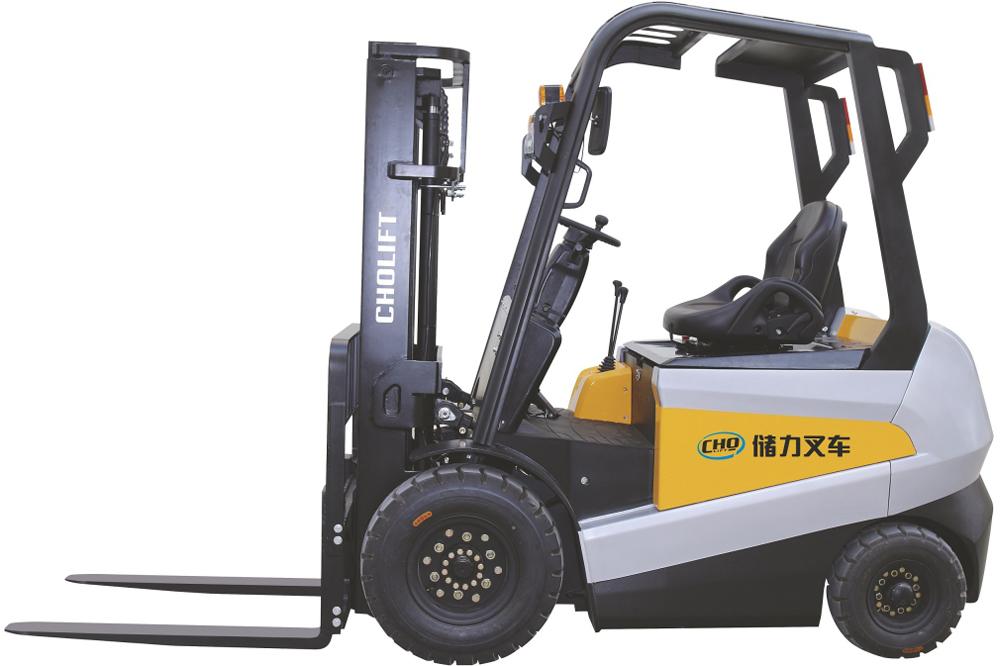

Our four-wheel electric forklift operates with excellent stability and power to handle goods in the aisles of warehouses with different widths. It features a load capacity of 2.5T and the lifting height can reach 6m, significantly greater than the compact 3-wheel units. The machine can be equipped with optional features like solid tires, side-pull cells, side shifters, full free lift tool, and other attachments to enhance performance according to your needs.

Features

Safety
- Each 4-wheel electric forklift is equipped with an emergency button whose role is to cut power to the machine immediately.
Easy operation

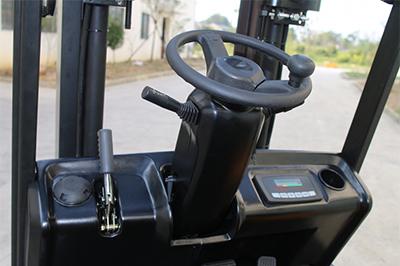

- Italian ZAPI display clearly shows your battery power level, fault codes, and operating times. This optimizes operation and maintenance efforts.
- A forklift deceleration device is designed to automatically kick in when the fork is descending down to 10 cm from the ground. It ensures a smooth landing.
High efficiency
- AC power greatly increases speed and acceleration, enhancing working efficiency.
- The drive motor with a transverse design provides greater accumulator capacity and a low forklift center of gravity.
High braking performance
- The electric forklift performs automatic braking when the accelerator is released. This prevents the forklift from moving down ramps and other sloped surfaces.
Low maintenance cost
- The application of an AC motor means you do not need to replace parts regularly like carbon brushes and commutators. The electrical motor is also emissions free, meaning it can be used indoors, even in compact spaces.

Technical parameters

Model		CPD20A	CPD25
Drive		Electric
Rated capacity/rated load	Q(kg)	2000	2500
Load center distance	C(mm)	500
Lift height	h3(mm)	3000
Free lift	h2(mm)	140
Mast/fork carriage tilt forward/backward	α/β(°)	6°/12°
Lowered mast height	h1(mm)	2045
Overhead guard height	h5(mm)	2205
Ground clearance at center of wheelbase	m1(mm)	110
Length to face of forks	l2(mm)	2418
Overall width	b1(mm)	1150
Fork dimensions	s/e/l(mm)	40×125×1070
Fork width	mm	250/1040
Load distance, center of drive axle to fork	x(mm)	478
Turning radius	Wa(mm)	2130
Extended mast height	h4mm	4145
Aisle width for pallets 1000×1200 crosswise	Ast(mm)	4110
Aisle width for pallets 800×1200 lengthwise	Ast(mm)	4025
Travel speed, laden	km/h	12.5
Travel speed, unladen	km/h	13.5
Lift speed, laden/unladen	mm/s	260
Lowering speed, laden/unladen	mm/s	400
Max gradeability, laden	%	15
Max gradeability, unladen	%	15
Service brake		Hydraulic
Steer wheel size		7.00-12-12PR
Load wheel size		18×7-8-14PR
Track width, front	mm	970
Track width, rear	mm	950
Wheelbase	mm	1500
Service weight including battery	kg	3920	4120
Axle loading, laden front	kg	5062	5777
Axle loading, laden rear	kg	858	843
Axle loading, unladen front	kg	1568	1648
Axle loading, unladen rear	kg	2352	2472
Drive motor	kw	11
Lift motor	kw	9.5
Battery voltage, nominal capacity K5	V/Ah	48/560
Type of drive control		AC
Manufacturer of drive control		ZAPI
Operating pressure for attachments	Mpa	17.5

Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
