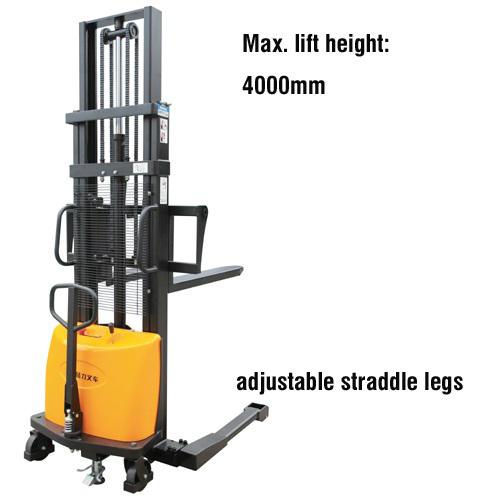

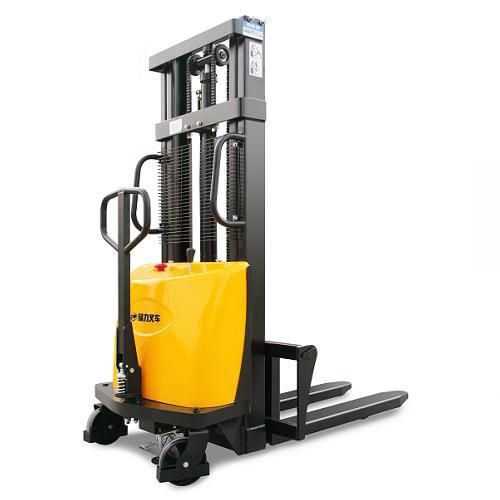

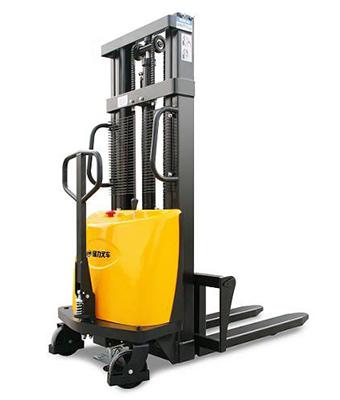

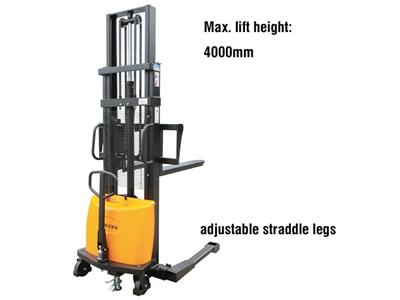

The maximum lifting height of our semi-electric stacker is 4000mm and its maximum load capacity is 2T. The high performance loading machine features a straddle leg that is adjustable to meet the various handling requirements of different materials and industries. No matter your needs, the semi-electric stacker can handle the job.

Features

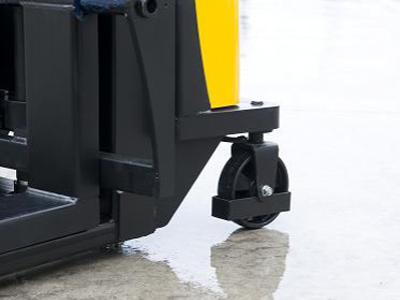

Lever-type assisted steering device reduces the amount of strength required to maneuver the stacker. Its service life is three times more than normal chains.
Designed with a low center of gravity, the stability of the truck is enhanced during operation.

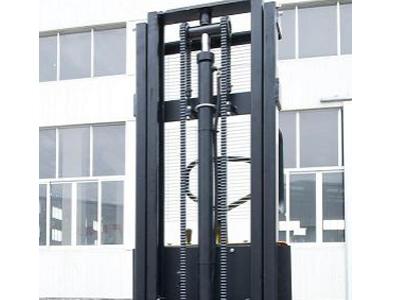

With an explosion-proof valve at the bottom of cylinder, the mast will not rapidly decline even if the hydraulic pipe bursts, protecting the operator.

Technical parameters

Model No.		BDA series
Rated capacity	Q(kg)	1000/1500/2000
Load center	c(mm)	500
Wheelbase	Y(mm)	1145
Service weight (with battery)	kg	265-350
Steer wheel dimensions	(mm)	φ80x93
Load wheel dimensions	(mm)	φ180x50
Lowered mast height	h1(mm)	2085/1835/2085/2335
Lifting height	h3(mm)	1600/2500/3000/3500
Fork lowered height	h13(mm)	90/75
Overall length	l1(mm)	1505
Overall width	b1(mm)	1050

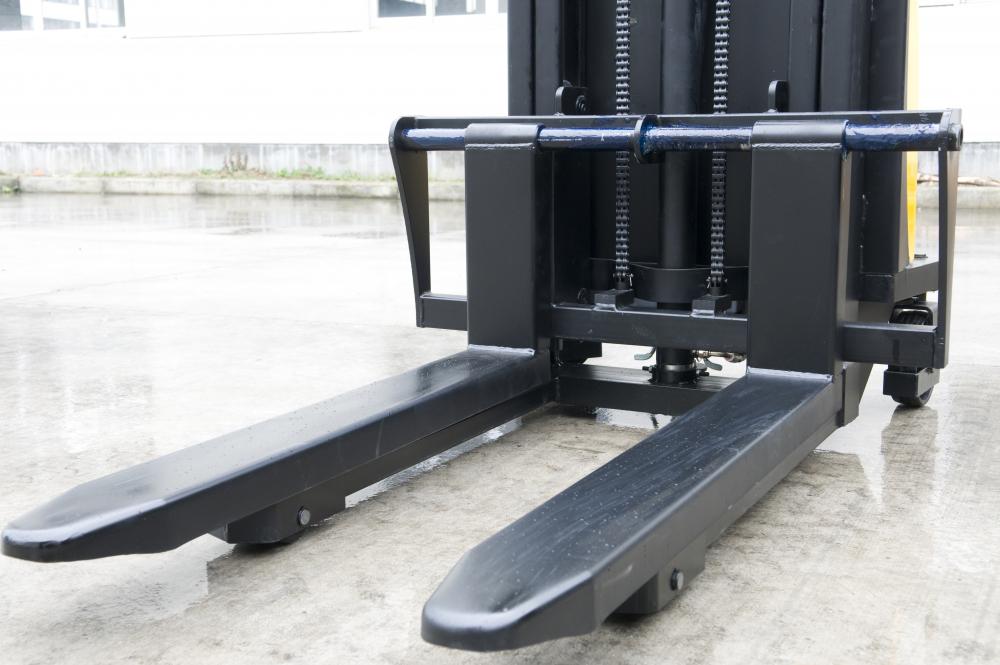

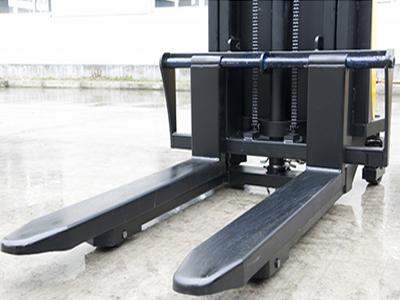

Fork length	l(mm)	900/1070
Fork width	b5(mm)	680/980
Ground clearance	m1(mm)	28
Aisle width for pallets 1000×1200 crossways	Ast(mm)	1705
Aisle width for pallets 800×1200 lengthways	Ast(mm)	1755
Turning radius	Wa(mm)	1210
Lifting speed laden/unladen	m/s	135/150
Lowering speed laden/unladen	m/s	Hand control
Lifting motor power	kW	1.6
Battery voltage/rated capacity	V/Ah	12/(100/120/135)
