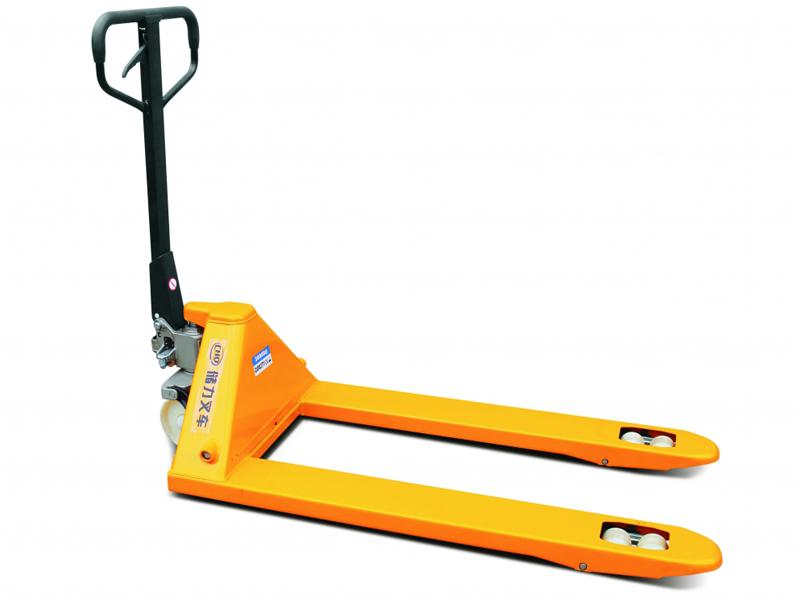

Hand Pallet Jack
The SBA hand pallet jack is the ideal handling partner for all manual transport tasks over short distances, especially on trucks in small warehouses and small markets. Load capacity options including 2.5T, 3T, or 3.5T, with a lifting height of 190 or 200mm.
Features

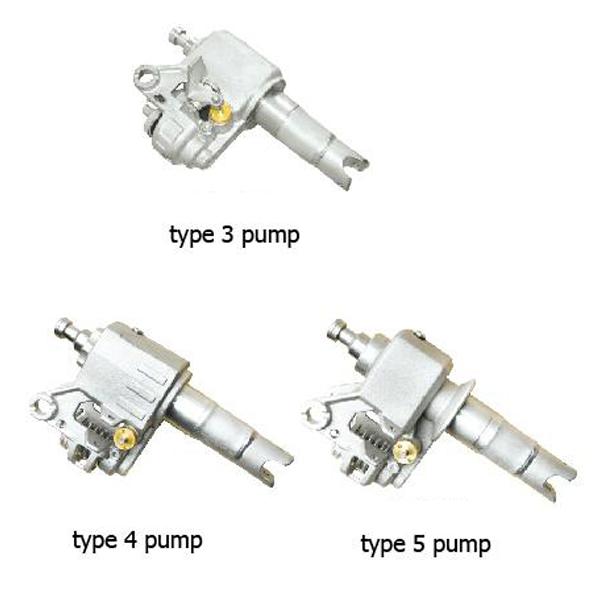

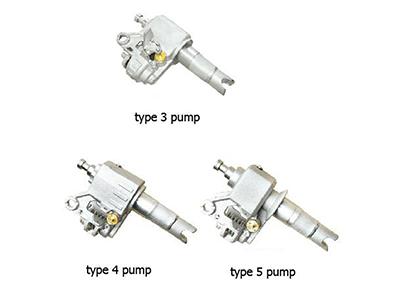

- The use of a one-piece cast hydraulic pump ensures no looseness and no leakage.
- Suitable for all kinds of environments with a traditional service life of 3 to 5 years.
- As it is made of a high strength alloy steel, it features a larger load capacity.
- Set active safety valve to avoid the overload use.

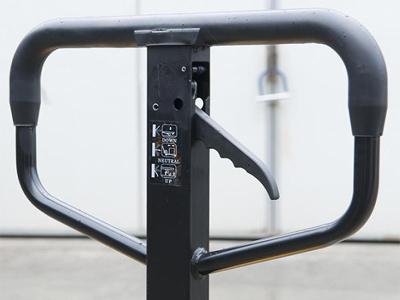

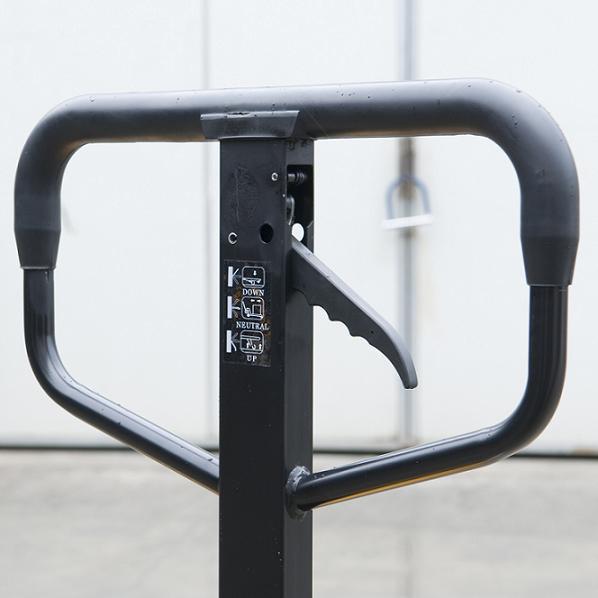

- The humanized design features a standard foot pedal and guide pulley, ensuring a highly efficient, easy operation and lower labor intensity.
Technical parameters
| Model | SBA | |||
| Load capacity/rated load | Q(kg/lb) | 2500/5512 | 3000/6614 | 3500/7716 |
| Load centre distance | C(mm/in) | 500/20 | 500/20 | 500/20 |
| load wheels | mm/in | Φ180×50/Φ7×2 | Φ180×50/Φ7×2 | Φ180×50/Φ7×2 |
| Load wheel size (single) | mm/in | Φ80×93/74×93 | Φ80×93/74×93 | Φ80×93/74×93 |
| (Φ3×3.7/2.9×3.7) | (Φ3×3.7/2.9×3.7) | (Φ3×3.7/2.9×3.7) | ||
| Load wheel size (tandem) | mm/in | Φ80×70/74×70 | Φ80×70/74×70 | Φ80×70/74×70 |
| (Φ3×2.8/2.9×2.8) | (Φ3×2.8/2.9×2.8) | (Φ3×2.8/2.9×2.8) | ||
| Lifting height | h3(mm/in) | 200/190(7.8/7.5) | 200/190(7.8/7.5) | 200/190(7.8/7.5) |
| Lowered height | h13(mm/in) | 85/75(3.4/3) | 85/75(3.4/3) | 85/75(3.4/3) |
| Overall length | l1(mm/in) | 1534/1604(60.4/63) | 1534/1604(60.4/63) | 1534/1604(60.4/63) |
| Fork length | s/e/l | 54/160/1150(1220) | 54/160/1150(1220) | 54/160/1150(1220) |
| [2.1/6.3/45(48)] | [2.1/6.3/45(48)] | [2.1/6.3/45(48)] | ||
| Distance between fork-arms | b5(mm) | 520/550/685 | 520/550/685 | 520/550/685 |
| (20/22/27) | (20/22/27) | (20/22/27) | ||
| Turning radius | Wa(mm) | 1249/1319 | 1249/1319 | 1249/1319 |
| (49/52) | (49/52) | (49/52) | ||
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
