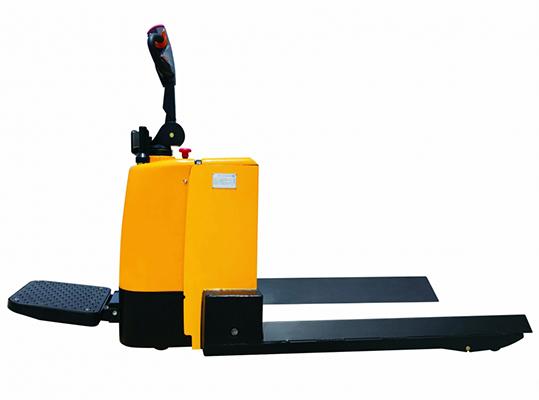

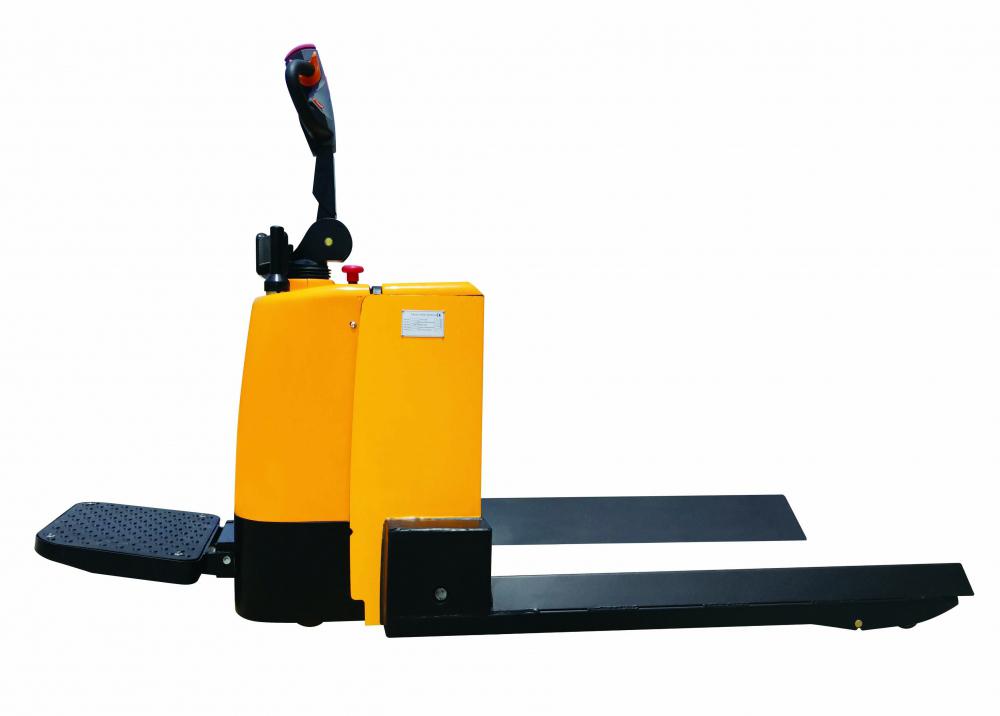

Reel Handling Pallet Truck

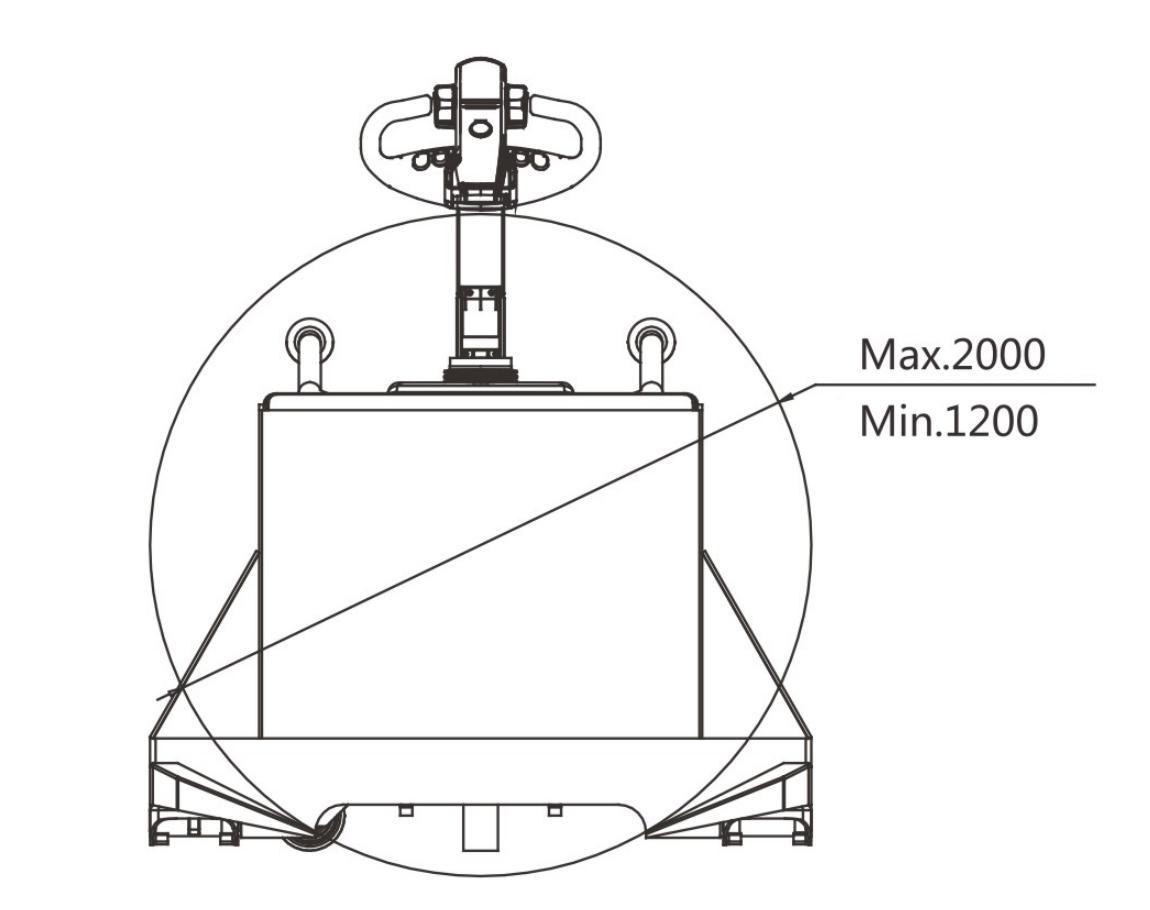

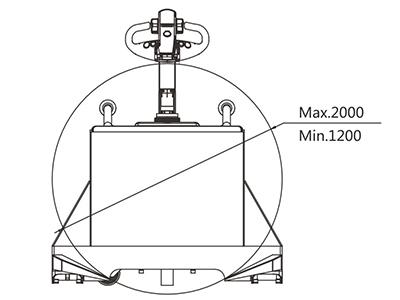

Reel handling pallet truck is frequently to handle rolls of material including paper, film, foil, textile and nonwovens. V-Pans are built to accommodate a customer’s roll sizes of 1200-2000 mm in diameter, weighing as much as 2T. It can prevent the cylindrical goods from rolling, which saves time and labor.

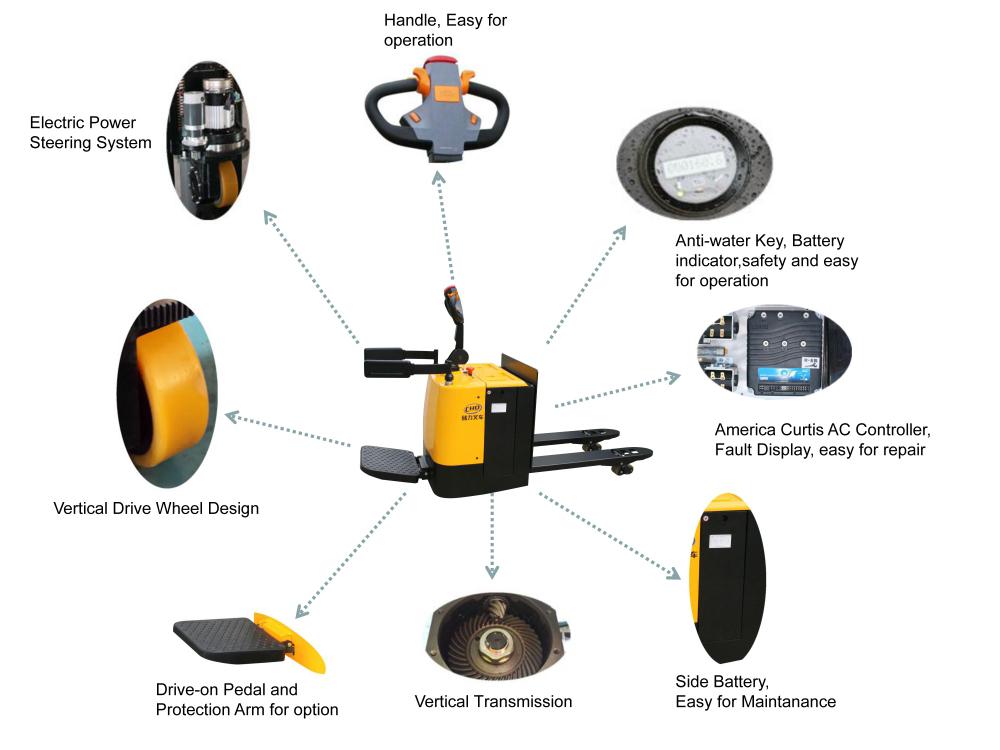

Features
- Electronic power steering function makes the operation easier.
- Humanized multiple-functional handle design makes it easy to operate.
- High quality hydraulic system has the features of low noise, low vibration and high sealing, it can guarantee stable speed of ascending and descending.
- Electronic limit switch can accurately control the maximum lifting height to prevent damaging motor.
- The hydraulic system with multiway valve can control the moving of left, right, forward and backward. The tilting speed of forward and backword can be adjusted.
- Equipped with the function of emergency reverse driving and emergency power off.
Technical parameters
| Model | QBA20Z | |
| Load capacity | Q(kg) | 2000 |
| Load center distance | c(mm) | 700 |
| Wheelbase | Y(mm) | 1450 |
| Service weight(with battery) | kg | 930 |
| Tyres | Polyurethane tyres | |
| Steer wheel size | Φ248×75 | |
| Load wheel size | Φ80×80 | |
| Caster Size | Φ115×50 | |
| Wheels quantity (x=drive wheels) | 1X+2/4 | |
| Tread, front | b10(mm) | 1040 |
| Tread, rear | b11(mm) | 391/526 |
| Max. lift height | h3(mm) | 100 |
| Fork height, lowered | h13(mm) | 170 |
| Overall length | l1(mm) | 2300 |
| Overall width | b1(mm) | 1200 |
| Fork dimensions | S/e/l(mm) | -- |
| Width over forks | b5(mm) | 1200 |
| Ground clearance, center of wheelbase | m2(mm) | 20 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 2830 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 2710 |
| Turning radius | Wa(mm) | 2020 |
| Travel speed, laden/unladen | Km/h | 6/6 |
| Lift speed, laden/unladen | m/s | 0.06/0.08 |
| Lowering speed, laden/unladen | m/s | 0.05/0.045 |
| Max. gradeability, laden/unladen | % | 5/8 |
| Service brake | Electromagnetism: regenerative brake | |
| Drive motor power | kW | 1.5 |
| Lift motor power | kW | 2 |
| Battery voltage/nominal capacity | V/Ah | 24/240 |
| Battery weight | Kg | 260 |
| Steering Type | Electronic | |
| Sound level at the driver's ear acc. to DIN12053 | dB(A) | 70 |
