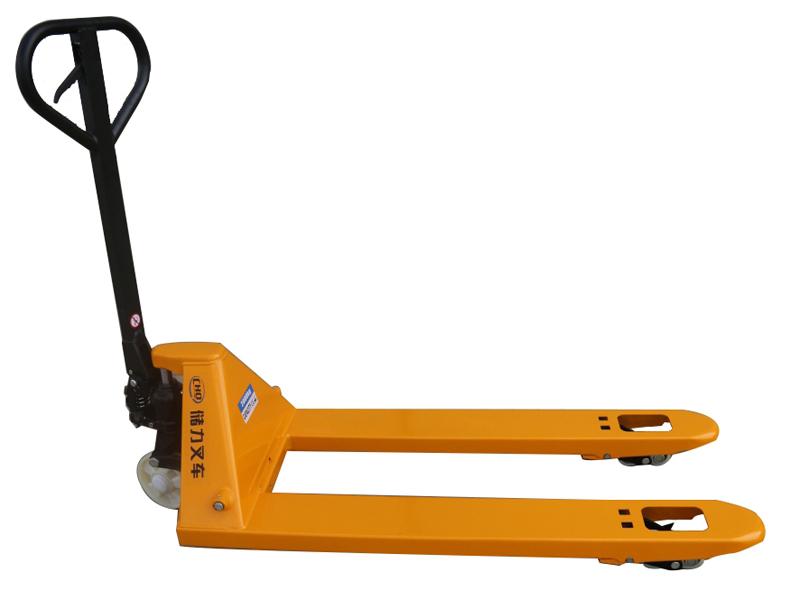

SBA-D20 Hand Pallet Jack
With simple and solid structure, as well as a stable operation, this hand pallet jack features a load capacity of 2T and a lifting height of 190mm, making it ideal for retail, storage, and beverage industries.
Features
- Reliable hydraulic system
- Solid alloy steel structure and chrome plated piston rod.
- Epoxy powder coating for preventing cracking and corrosion.
- Set active safety valve to avoid the overload use.
- The integral valve core is easy to maintain.
- The humanized design ensures a highly efficient, easy operation with a lower labor intensity.
Technical parameters
| Model | | SBA-D20 |
| Load capacity/rated load | Q(kg) | 2000 |
| Load center distance | c (mm) | 500 |
| Net weight | kg | 55-65 |
| Steering wheel | mm | Φ160×50 |
| Load wheel | mm | Φ70×60 |
| Lifting height | h3(mm) | 190 |
| Height drawbar in driving position max./min. | h14(mm) | 1234/1224 |
| Lowered height | h13(mm) | 75 |
| Fork dimensions | s/e/l | 54/150/1150(1220) |
| Distance between fork-arms | b5(mm) | 520*/550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1730/1800 |
| Aisle width for pallets 800×1200 crossways | Ast(mm) | 1780/1800 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
