Electric Tow Tractors

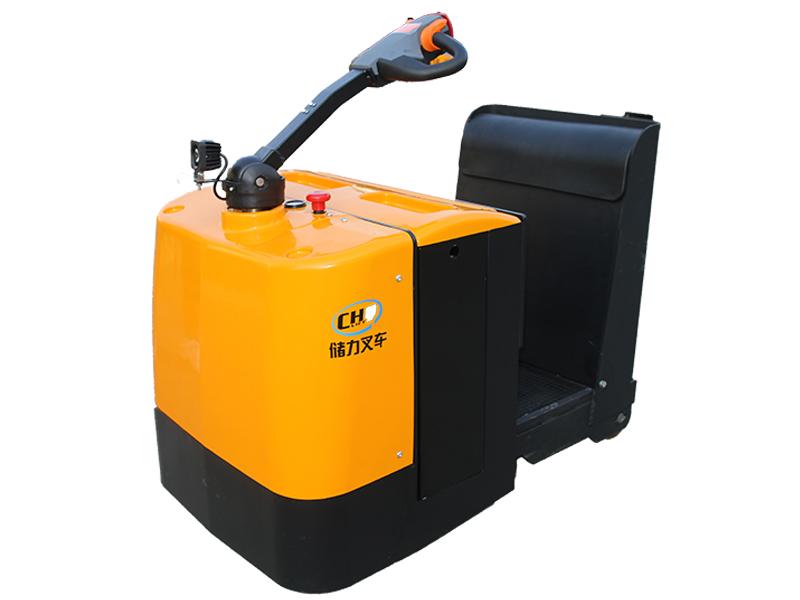

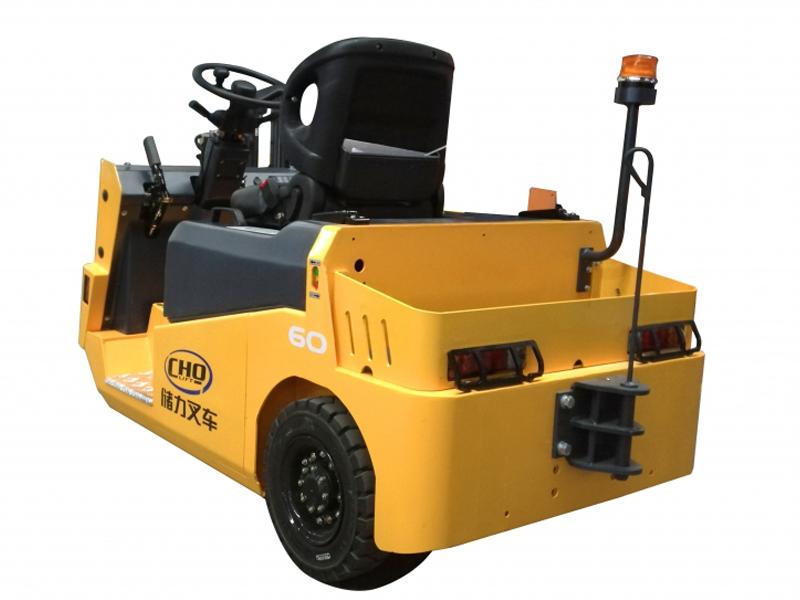

QDD electric tow tractors are ideal for the horizontal transportation of high-volume orders and towing cars, and here at Cholift, we offer both seated electric tow tractors and rider electric tow tractors for customers to choose from. In addition, customers can choose to have a strobe light, flashing emergency lights, reflector, or light bar equipped to improve daily operational visibility.
Features
- The electronic power steering system ensures steering is easy and quiet.
- the brushless AC motor needs no maintenance
- The driving controller is from the American company CURTIS.
- Electromagnetic regenerative braking system
- Automatic speed reduction in curves ensures maximum controllability and maneuverability at any speed
- Stepless speed regulation, safe and silent
- Multiple automatic protection system of controller
Technical parameters
| model | | QBA-Q | QDD |
| Rated traction weight | kg | 3000 | 6000 |
| Rated pulling power | N | 1100 | 1170 |
| Operating type | kg | Stand on | Seat |
| Wheels type | | Pu | Rubber |
| Wheel quantity | | 1/2 | 1/2 |
| Drive wheel | mm | 248*75 | 350*56 |
| Bearing wheel | mm | 160*73 | 400*86 |
| Overall length | mm | 1369 | 2052 |
| Overall width | mm | 790 | 984 |
| Min. turning radius | mm | 1255 | 1720 |
| Min. ground clearance | mm | 40 | 100 |
| Coupler height | mm | 287.50 | |
| Battery voltage | V | 24 | 48 |
| Battery capacity | Ah | 810 | 540 |
| Service weight | Kg | 3.5/4 | |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
