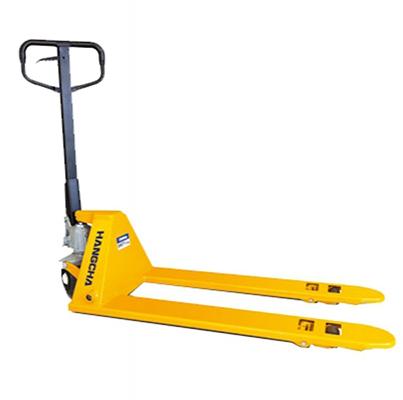

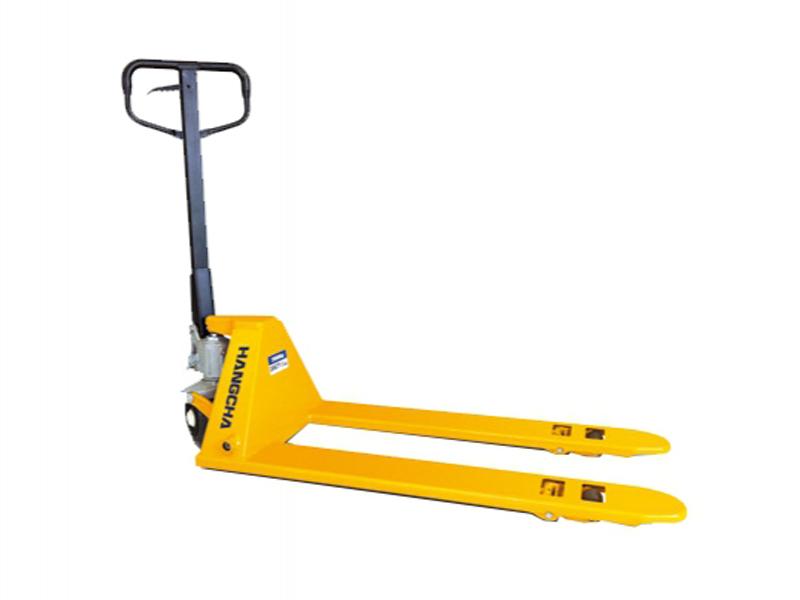

Low Profile Pallet Jack
Low profile pallet jacks feature a lower forklift height, making them suitable for pallets or skids with low clearance openings. The low profile pallet jack is rated for a 2T maximum load capacity, and a lifting height of 157mm or 160mm.
Features
- The low fork height designs broadens product use scope, making it ideal for pallets with special heights.
- The use of a one-piece cast hydraulic pump ensures no looseness and no leakage.
- This pallet jack is suitable for a variety of environments, with a typical service life of 3 to 5 years.
- As it is made of a high-strength alloy steel, it features a large load capacity.
- Set active safety valve to avoid the overload use.
- The humanized design ensures a highly efficient, easy operation and lower labor intensity.
Technical parameters
| Model | SBA-L | ||
| Load capacity/rated load | Q(kg/lb) | 1500 | 2000 |
| Load center distance | C (mm/in) | 500 | 500 |
| load wheels | mm/in | Φ150 | Φ150 |
| steer wheels | mm/in | Φ50 | Φ58 |
| Lifting height | h3(mm/in) | 157 | 160 |
| Lowered height | h13(mm/in) | 55 | 65 |
| Overall length | l1(mm/in) | 1547/1617 | |
| Fork length | s/e/l | 1150/1220 | |
| Distance between fork-arms | b5(mm) | 550/680 | |
| Turning radius | Wa(mm) | 1249/1319 | |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
