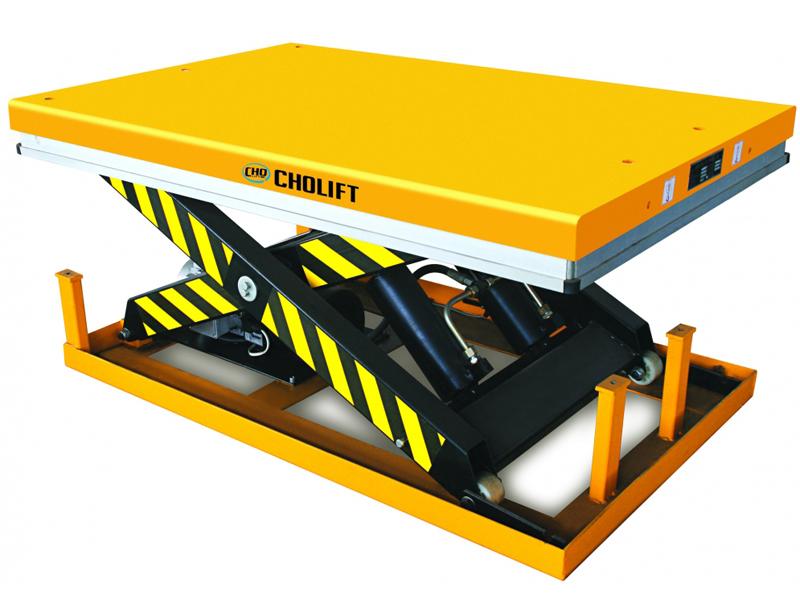

The DG series single scissor lift table is often used for material handling directly on the production floor.
- Load capacity: 1T-4T
- Lifting height: 900-2050mm
- Platform length: 1300-1700mm

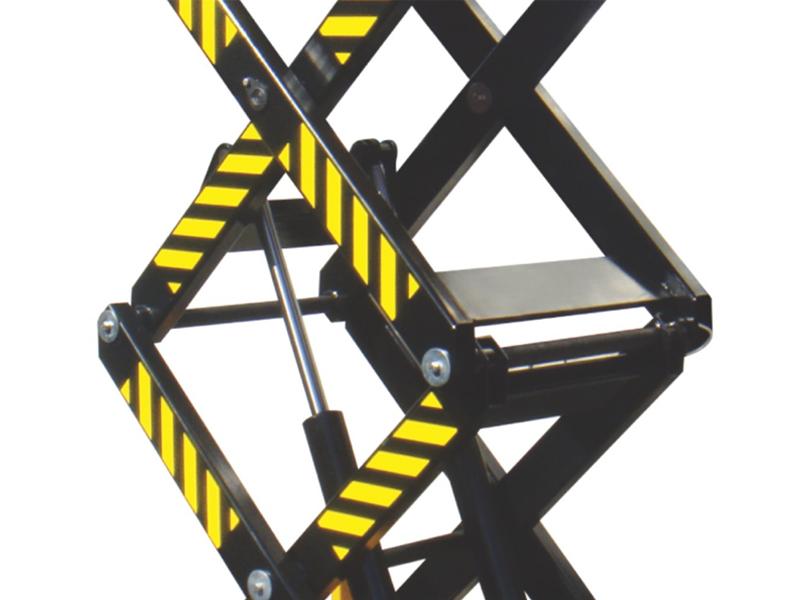

- The table is equipped with single or multiple fork arms according to the lifting height requirements.
- The reliable hydraulic system guarantees the long service life.
- Electric controls are responsible for the ascent and descent, ensuring a highly efficient, easy operation.
- The base is fixed on the ground, ensuring a stable ascent and descent.
- Overload protection.
- The stable ascent and descent is guaranteed regardless of the load size and weight, with no impact and a safe operation.
- The lift table is equipped with protection devices to ensure safe operation and an automatic stop when obstacles are encountered.
|Model (double scissors) || |
|DG1000 ||DG2000 ||DG4000 |
|Load capacity/rated load ||kg ||1000 ||2000 ||4000 |
|Max. lift height ||mm ||900 ||1000 ||1050 |
|Min. height of table ||mm ||205 ||230 ||240 |
|Table size ||mm ||1300*850 ||1300*850 ||1700*1200 |
|Service weight ||kg ||200 ||235 ||375 |
|Base size ||mm ||1250*785 ||1250*785 ||1600*900 |
|Rise time ||s ||20-25 ||20-25 ||30-40 |
|Power supply ||V/Hz ||380V/50Hz ||380V/50Hz ||380V/50Hz
