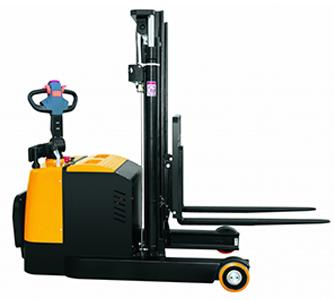

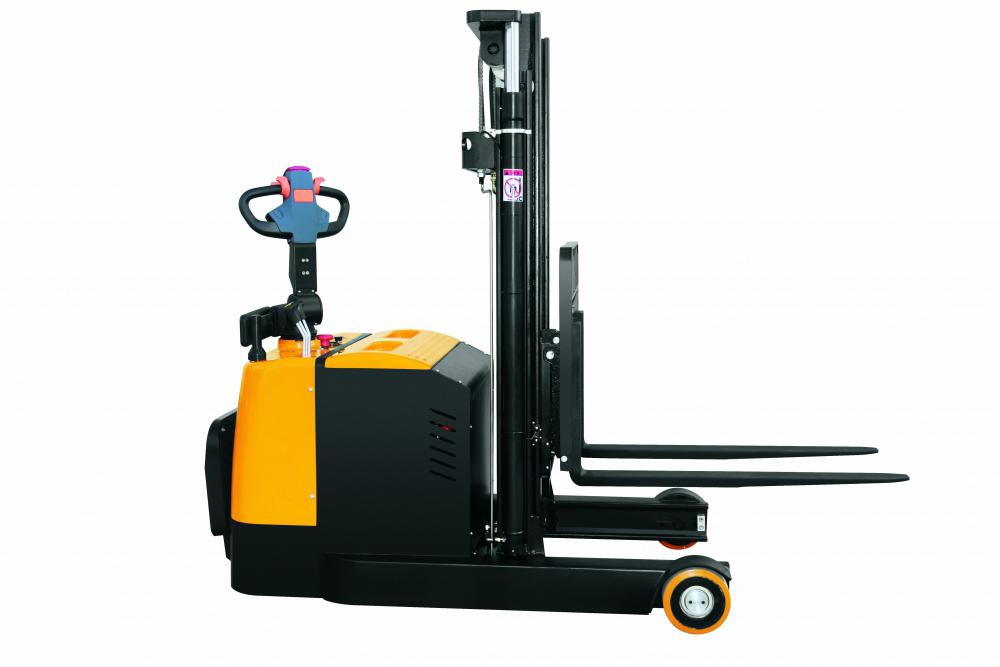

Electric Reach Stacker

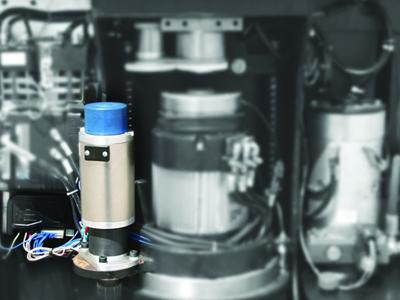

Our electric reach stacker is equipped with a specially engineered electronic power steering system that improves its control capabilities. This allows operators to maneuver more easily and enhance productivity.
Basic Parameters
- The maximum load capacity: 2T
- The maximum lifting height: 5500mm
Features
- Solid and stable H-type mast. Its hydraulic cylinder is placed on the side enable a wider operating view.
- Pallet fork can be tilted forward and backward for superior control during loading and unloading.
- Decelerates automatically when turning for greater stability and safety.
High performance
- High quality hydraulic system operates with low noise and guarantees stable ascending and descending speed.
- Electronic limit switch can accurately control the maximum lifting height to prevent damage to the motor.

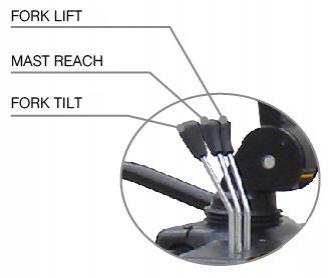

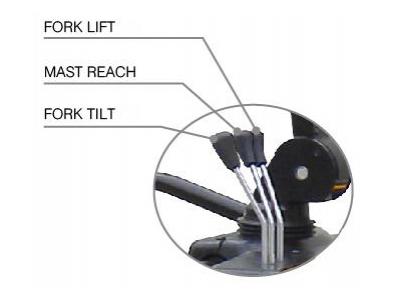

- The hydraulic system with multiway valve controls left, right, forward and backward movement. The tilting speed of forward and backward can be adjusted for improved loading and unloading.
Easy and safe operation

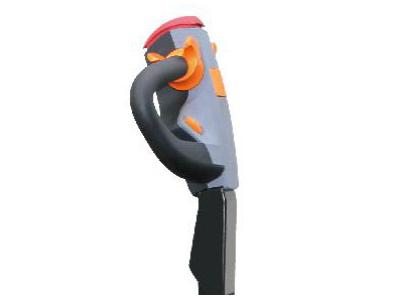

Equipped with emergency reverse driving and emergency power off functions.
Technical parameters
| Features | Model | | QQA12 | QQA15 | QQA20 | ||
| Drive | | Electric(battery) | |||||
| Operator type | | Standing | |||||
| Rated capacity | Q(kg) | 1200 | 1500 | 2000 | |||
| Load center distance | c(mm) | 500 | |||||
| Reach distance | l3(mm) | 500 | |||||
| Wheelbase | Y(mm) | 1280 | 1380 | ||||
| Weight | Service weight including battery | kg | 1750 | 1950 | 2190 | ||
| Tyre | Type | | Polyurethane tyre | ||||
| Steer wheel size | mm | Φ250×80 | |||||
| Load wheel size | mm | Φ210X85 | |||||
| Wheel number, steer wheel/load wheel (x= driving wheel) | | 1x/2 | |||||
| Tread, rear | b11(mm) | 895 | |||||
| Dimensions | Lift height | h3(mm) | 2500/3000/3500/4000/4500/5000/5500 | ||||
| Height, mast lowered | h1(mm) | 1750/2000/2250/2500/2000/2170/2340 | |||||
| Height, mast extended | h4(mm) | 3260/3760/4260/4760/5260/5760/6260 | |||||
| Height, fork lowered | h13(mm) | 35 | |||||
| Overall length | l1(mm) | 2260 | 2260 | 2360 | |||
| Overall width | b1(mm) | 980 | |||||
| Fork dimensions | S/e/l(mm) | 100/35/1070 | |||||
| Fork width | b5(mm) | 200~680 | |||||
| Ground clearance, center of wheelbase | m2(mm) | 50~110 | |||||
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2360 | 2360 | 2460 | |||
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2460 | 2460 | 2560 | |||
| Turning radius | Wa(mm) | 1500 | 1500 | 1600 | |||
| Motor | Drive motor power | kW | 1.2/1.5/1.5(AC) | ||||
| Lift motor power | kW | 3.3/4.5/4.5 | |||||
| Battery voltage, nominal capacity | V/Ah | 24/210 | 24/210 | 24/280 | |||
| Battery weight | Kg | 200 | 200 | 260 | |||
| Turning mode | | Electronic | |||||
| Others | Noise level at operator's ear, according to DIN12053 | dB(A) | < 70 | ||||
