Electric Straddle Stackers

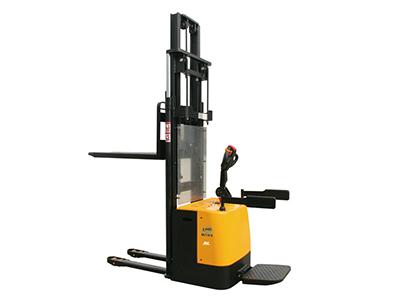

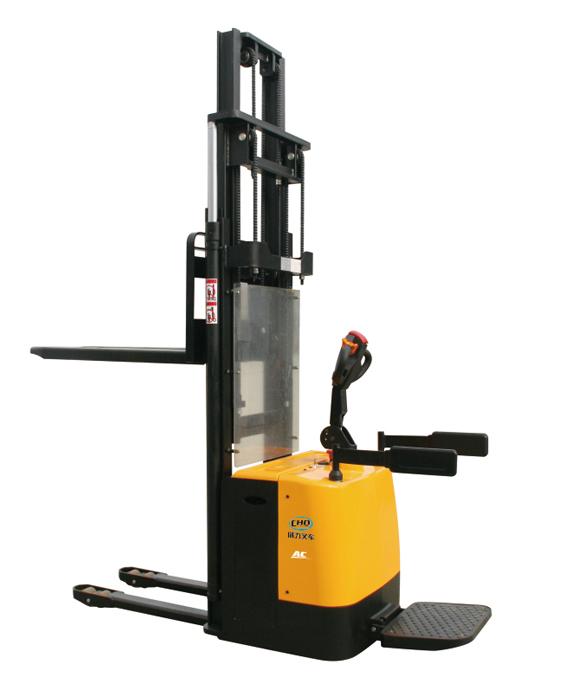

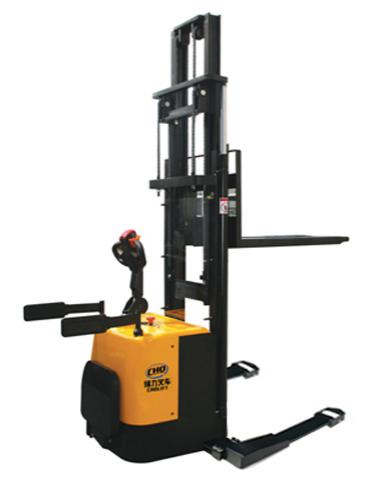

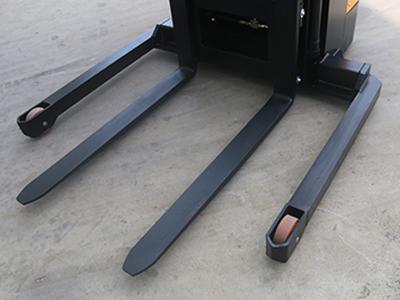

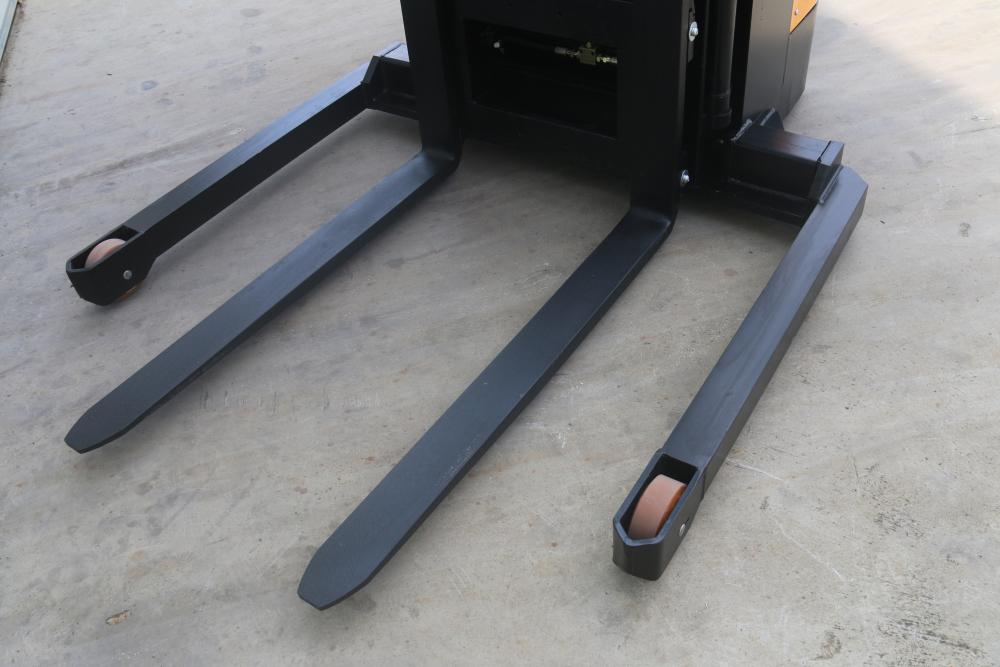

If you are looking for superior stacking ability and reliability for your loading dock operations, you are in luck. Our QDA-S electric pallet stacker is a high efficiency piece of machinery with adjustable outriggers allowing it to excel in various working environments.
Load capability: 1.5T-2T
The maximum lifting height: 3500mm.
Features
- Convenient maintenance increases uptime.
- The descent speed can be adjusted to guarantee stability during ascent and descent. It also reduces the brake pressure and wear.
- The electronic steering system makes maneuvering easier and smooth.
Technical parameters
| Features | Model | | QDA |
| Drive Type:electric(industry battery), diesel, gasoline, fuel gas | | Electric | |
| Operator type | | Standing | |
| Rated capacity | Q(kg) | 1500/2000 | |
| Load center distance | c(mm) | 600 | |
| Wheelbase | Y(mm) | 1355 | |
| Weight | Service weight(with battery) | kg | 1050/1220 |
| Chassis | Wheels | | Polyurethane |
| Steer wheel size | | Φ248×75 | |
| Load wheel size | | Φ80×70 | |
| Additional wheel | | Φ115×50 | |
| Wheel number, steer wheel/load wheel （x = driving wheel） | | 1x+2/4 | |
| Tread, front | b10(mm) | 632 | |
| Tread, rear | b11(mm) | 385/500 | |
| Dimension | Retracted height | h1(mm) | 2080/1720/1970/2080/2220 |
| Max. lift height | h3(mm) | 1600/2500/3000/3300/3500 | |
| Height, mast extended | h4(mm) | 2180/3080/3580/3880/4180 | |
| Height, fork lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 2000/2050 | |
| Overall width | b1(mm) | 850 | |
| Fork dimension | S/e/l(mm) | 55/185/1150 | |
| Fork width | b5(mm) | 570/685 | |
| Ground clearance | m2(mm) | 25 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2420 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2360 | |
| Turning radius | Wa(mm) | 1580 | |
| Performance Data | Traveling speed, laden/unladen | Km/h | 3/3.5 |
| Lifting speed, laden/unladen | m/s | 0.1/0.12-0.08/0.1 | |
| Descending speed, laden/unladen | m/s | 0.15/0.12-0.12/0.1 | |
| Max. gradeability, laden/unladen | % | 8/10 | |
| Traveling brake | | Electromagnetic brake | |
| Motor | Driving motor power | kW | 1.5 |
| Lifting motor power | kW | 3.0 | |
| Battery voltage/rated capacity | V/Ah | 24/210 | |
| Battery weight | Kg | 190 | |
| Turing mode | | Electric power system | |
| Other details | Noise Level at Operator's Ear, according to DIN12053 | dB(A) | 70 |
