Order Picker

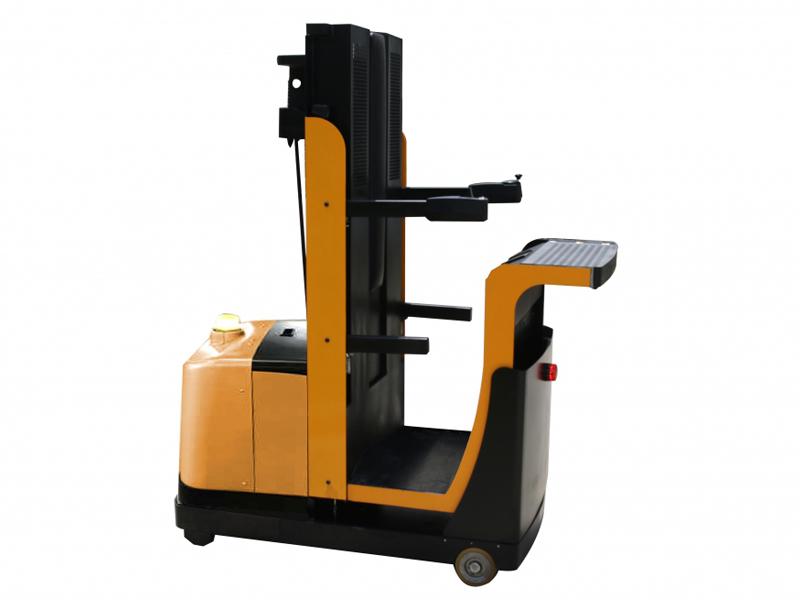

The QDJ order picker is ideal for high-level order picking applications. With its short turning radius, it is ideal for operation in narrow warehouse spaces, with this particular model reaching picking locations up to 3200mm and a 300kg capacity.

Features

The longer wheelbase not only increases the work efficiency, but also improves operational safety.
The QDJ order picker features a short turning radius, which makes it suitable for working in narrow spaces and picking materials on aerial platforms.
The cab is designed according to ergonomic principles, ensuring user comfort and a high picking efficiency.
The suspension cab reduces machine vibration and ensures picking is stable and efficient.
The independent braking system guarantees smooth and effective deceleration under all road conditions.

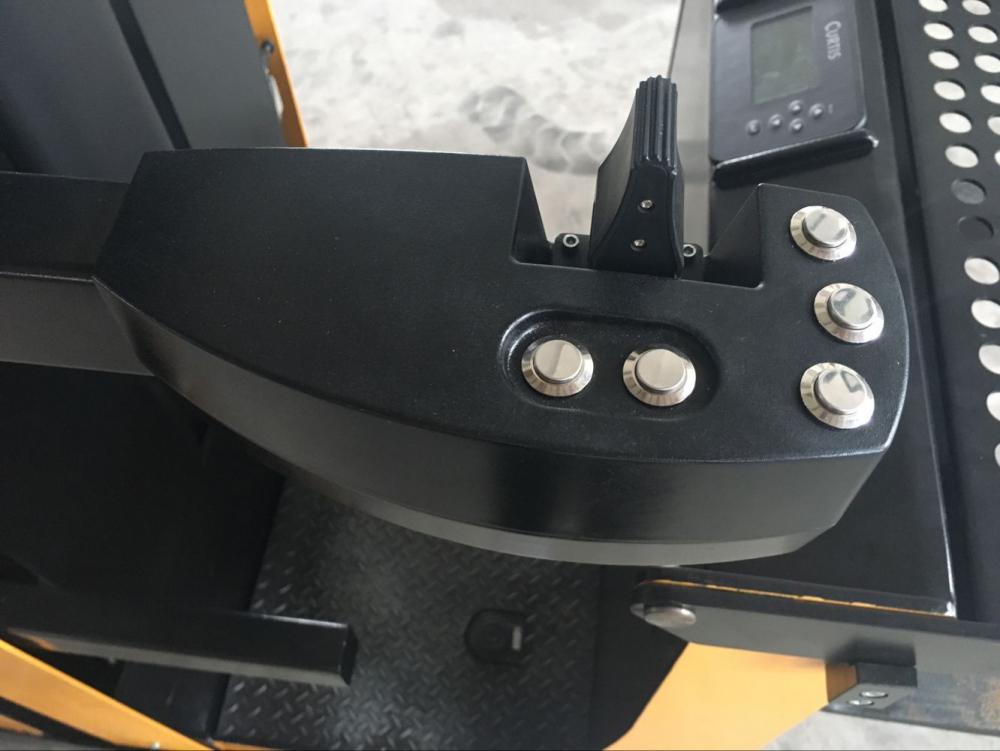

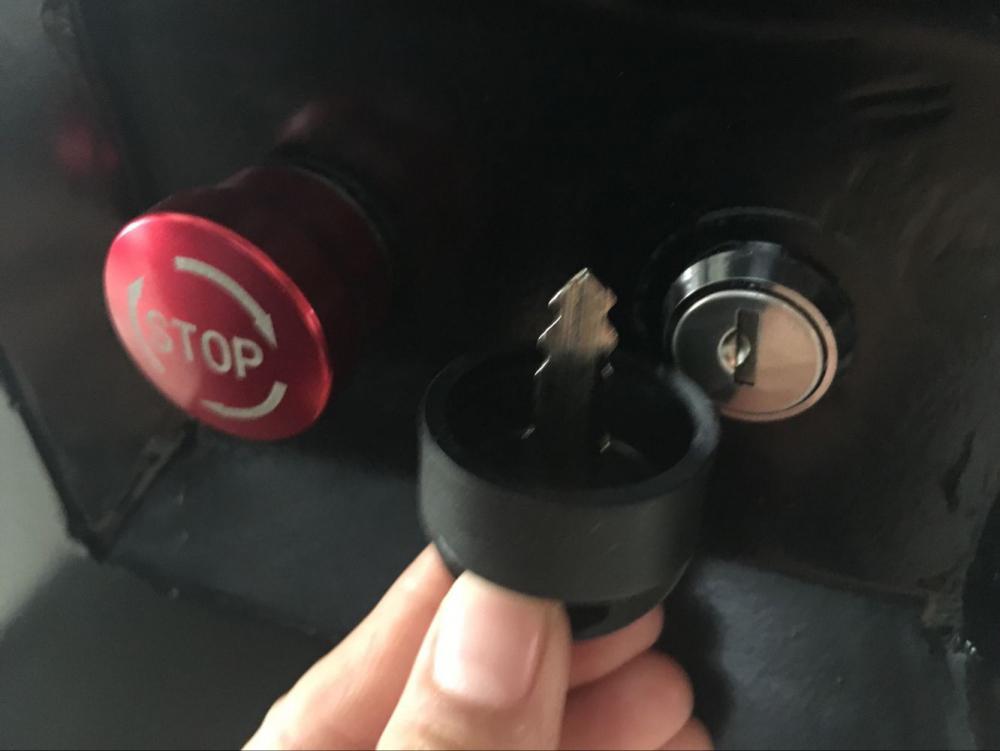

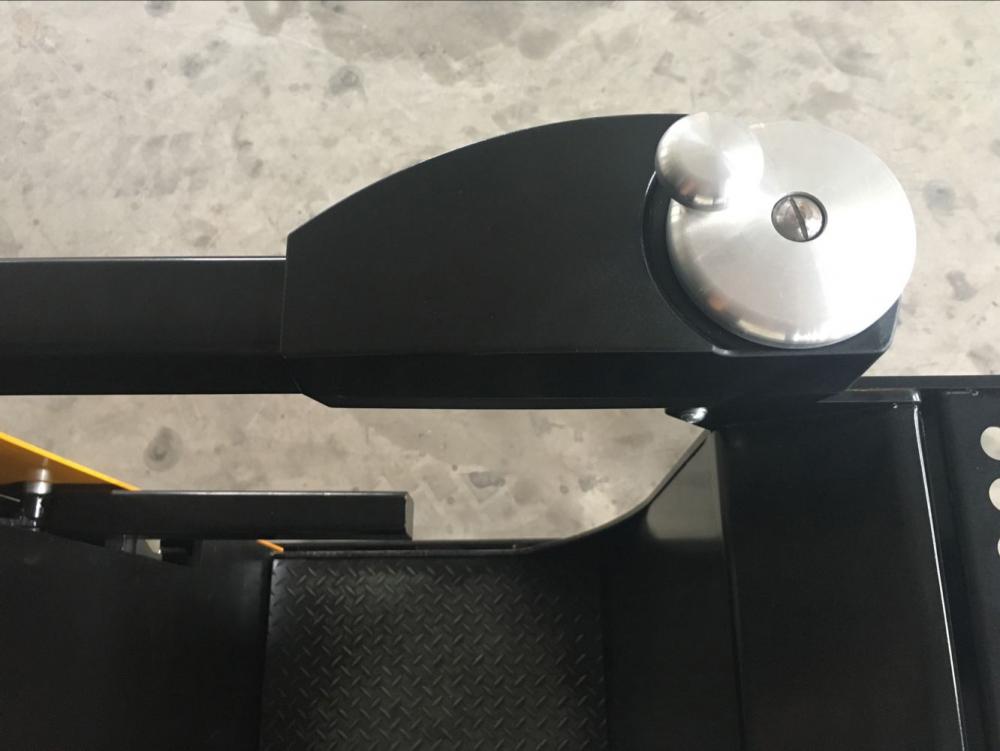

The two-hand control design and side-door protection ensures operator safety.

Technical parameters

Brand		CHOLIFT	CHOLIFT	CHOLIFT	CHOLIFT	CHOLIFT
Model		QDJ-V2	QDJ-V2	QDJ-V2	QDJ-V3	QDJ-V3
Drive		Electric	Electric	Electric	Electric	Electric
Operating		Stand-on	Stand-on	Stand-on	Stand-on	Stand-on
Load Capacity =Goods Tray + Fork + Platform	Q（kg）	400kg	400kg	400kg	400kg	400kg
Max. Good Tray Capacity	Q1（kg）	300kg	300kg	300kg	300kg	300kg
Wheel Material		PU	PU	PU	PU	PU
Drive Wheel	mm	Φ250×75	Φ250×75	Φ250×75	Φ250×75	Φ250×75
Load Wheel	mm	Φ152×75	Φ152×75	Φ152×75	Φ152×75	Φ152×75
Lowered Mast Height	h1（mm）	1595	1700	1955	1700	2230
Max. Working Height	h4（mm）	4630	4985	6075	4985	7055
Lifting Height	h3（mm）	3200	3500	4200	3500	5000
Overall Length	l1（mm）	1500	1500	1500	1510	1510
Overall Length with Goods Tray		1745	1745	1745	1745	1745
Overall Width	b1（mm）	832	832	832	832	832
Operating Handle Height	h5（mm）	1065	1065	1065	1065	1065
Ground Clearance	M2（mm）	81	81	81	81	81
Aisle Width	Ast（mm）	1930	1930	1930	1835	1835
Turning Radius	Wa（mm）	1405	1405	1405	1405	1405
Drive Speed（1st）	Km/h	5	5	5	5	5
Drive Speed（2nd）	Km/h	2.5	2.5	2.5	2.5	2.5
Drive Speed（3rd）	Km/h	1.2	1.2	1.2	1.2	1.2
Drive Speed（4th）	Km/h	0.6	0.6	0.6	0.6	0.6
Max. gradeability, laden/unladen	%	0	0	0	0	0

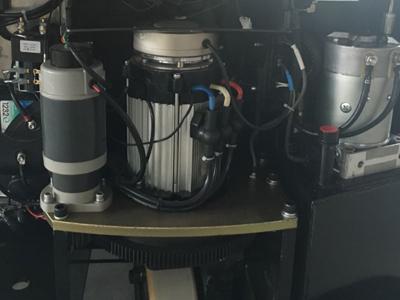

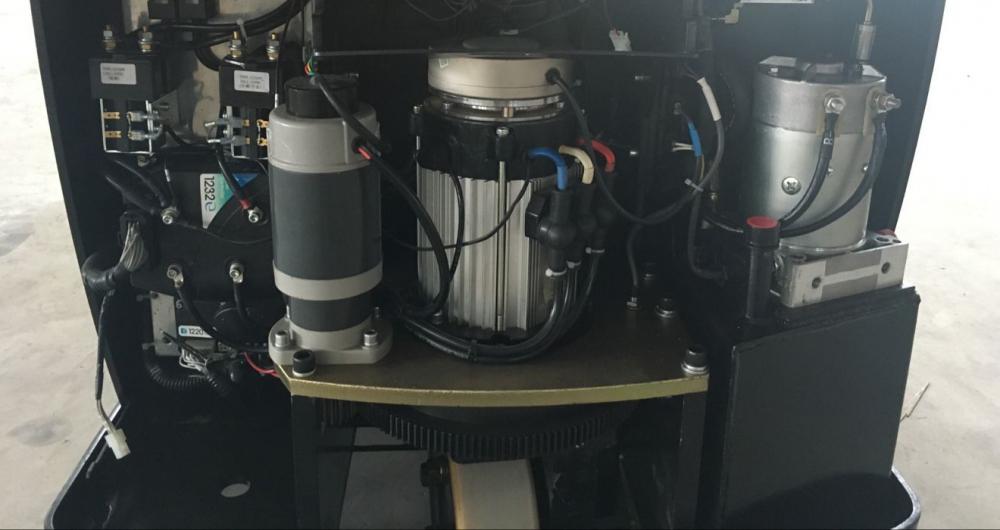

Drive Motor	KW	1.5	1.5	1.5	1.5	1.5
Liftng Motor	KW	3	3	3	3	3
Battery Voltage/Capacity	V/Ah	24V/210Ah	24V/210Ah	24V/210Ah	24V/210Ah	24V/210Ah
Turning motor		EPS	EPS	EPS	EPS	EPS
Controller motor		AC	AC	AC	AC	AC
