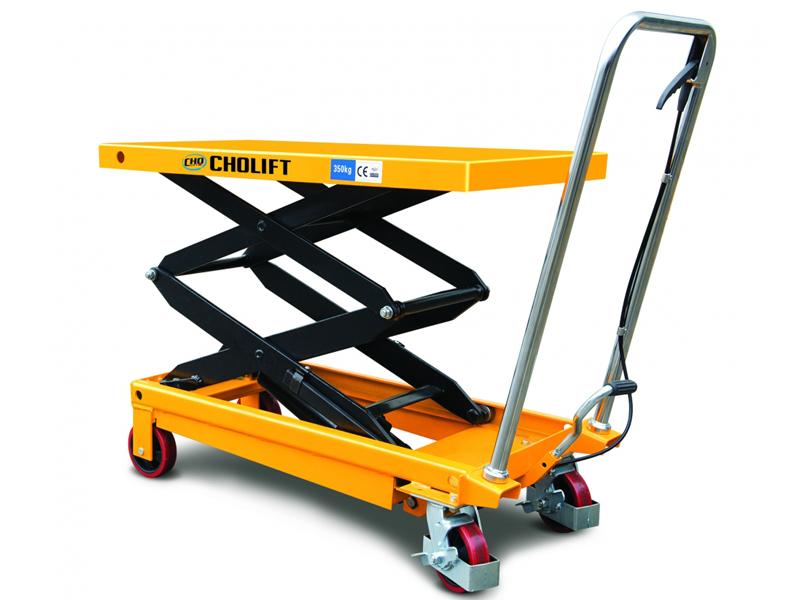

The SPS series dual-scissor table lift cart not only lifts materials, but also moves them from place to place within the factory.
Basic parameters
- Load capacity: 150kg-800kg
- Lifting height: 1100mm-1500mm
Features

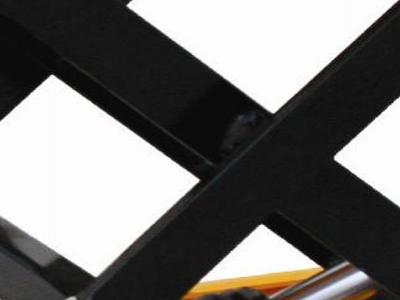

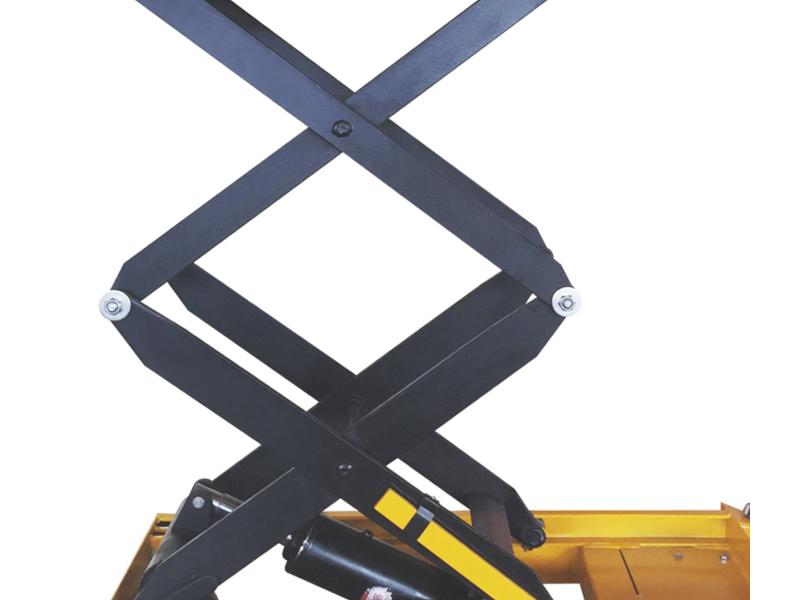

- The dual scissor fork arm design meets different lifting height requirements.

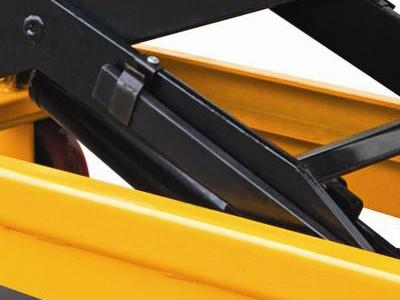

- The reliable hydraulic system guarantees the long service life.
- Electric controls control ascent and descent, guaranteeing a highly efficient, easy operation.
- The distance between every movable part is in full accordance with CE standards, ensuring user safety.

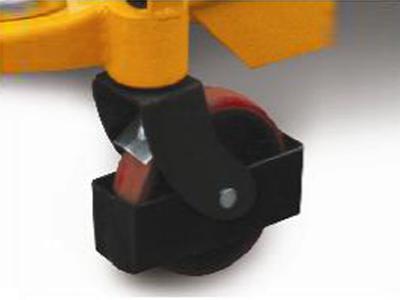

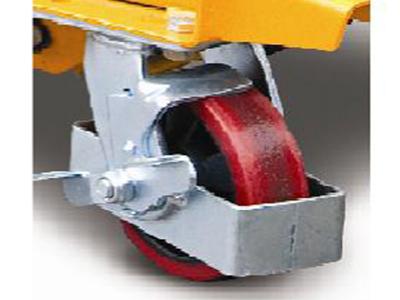

- The rear wheel is equipped with a protective wheel brace that will stop immediately in the event of an emergency.
- Overload protection.
- The stable ascent and descent is guaranteed regardless of the load weight and size, with no impact and a guaranteed safe operation.
- The lifting is carried out either by hand or via foot pedal.
- The hand control valve guarantees the accurate operation.
Technical parameters
Model (double scissors) | | SPS150 | SPS350 | SPS500 | SPS800 |
Load capacity/rated load | kg | 150 | 350 | 500 | 800 |
Max. lift height | h12 (mm) | 1100 | 1300 | 1550 | 1500 |
Min. height of table | h13 (mm) | 302 | 350 | 410 | 475 |
Lifting height | h3 (mm) | 798 | 950 | 1025 | 1025 |
Table size | lxb5xs(mm) | 700*450*35 | 910*500*52 | 1010*520*60 | 1220*610*60 |
Foot pedal cycles to max height | | ≤30 | ≤60 | ≤70 | ≤70 |
Service weight | kg | 64 | 105 | 172 | 172 |
Carton size | mm | 860*485*300 | 985*510*350 | 1370*645*470 | 1370*645*470 |
