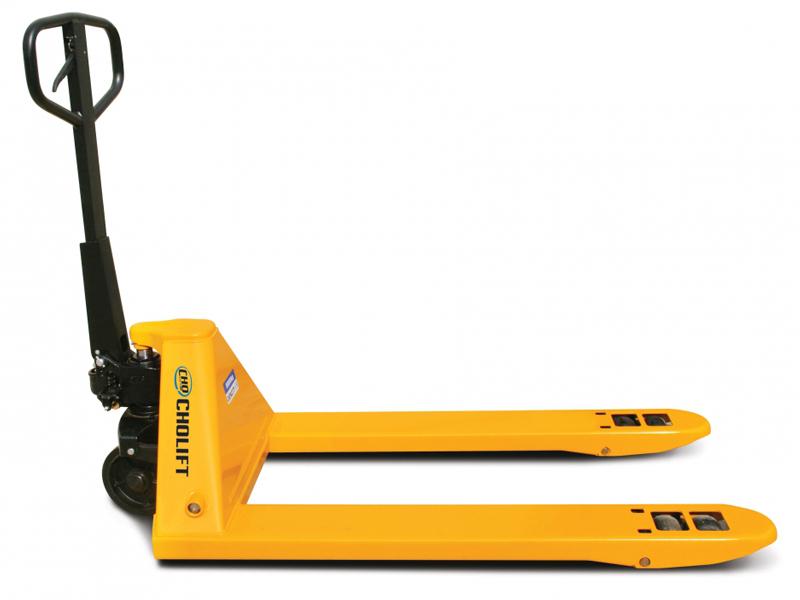

Equipped with a special hydraulic pump, the SBA-50 heavy duty pallet jack features an extended load capacity of 5T, making it ideal for heavy duty applications.

Features

The use of a one-piece cast hydraulic pump ensures no looseness and no leakage.
It is suitable for all kinds of environments with a traditional service life of 3 to 5 years.

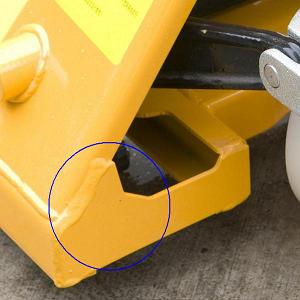

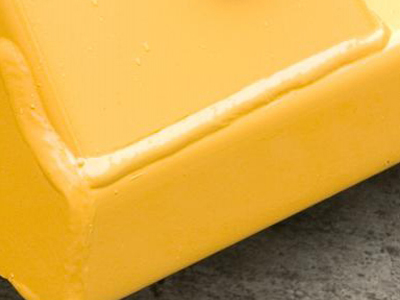

As it is made of high strength alloy steel, it features a large load capacity.
Set active safety valve to avoid the overload use.

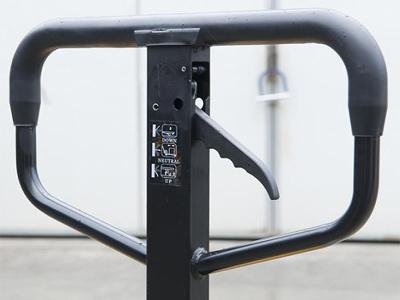

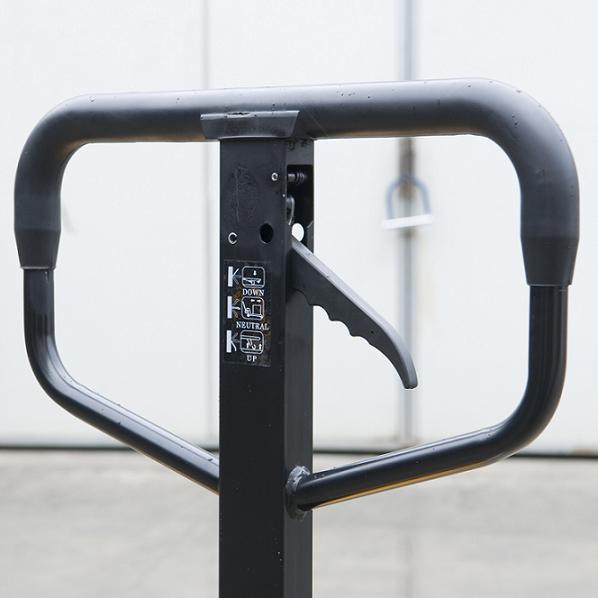

The humanized design ensures a highly efficient, easy operation and lower labor intensity.

Technical parameters

Model	SBA-50
Load capacity/rated load	Q(kg)	5000
Load center distance	c (mm)	500
Net weight	kg	110
load wheels	mm	Φ200×50
Load wheel size	mm	Φ85×80
Lifting height	h3(mm)	207
Height of drawbar in driving position max./min.	h14(mm)	1234/1224
Lowered height	h13(mm)	77/88
Fork dimensions	s/e/l	57/160/1150(1220)
Distance between fork-arms	b5(mm)	550/685
Aisle width for pallets 1000×1200 crossways	Ast(mm)	1730/1800
Aisle width for pallets 800×1200 crossways	Ast(mm)	1780/1800
