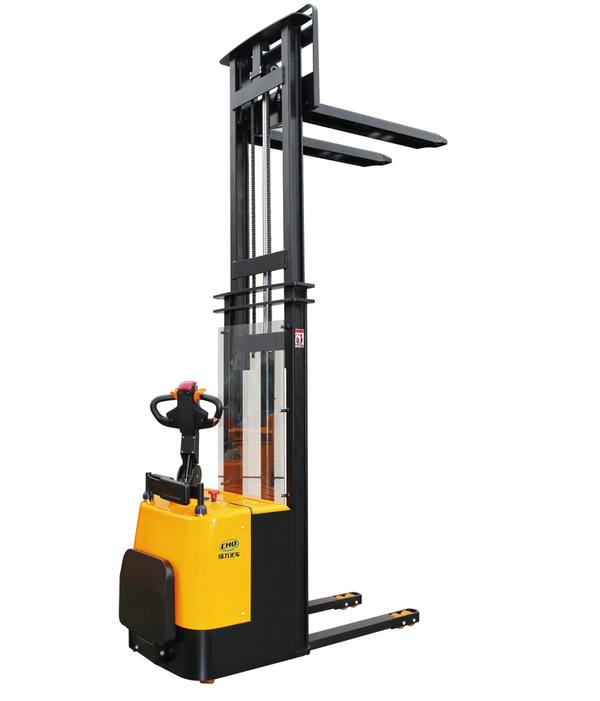

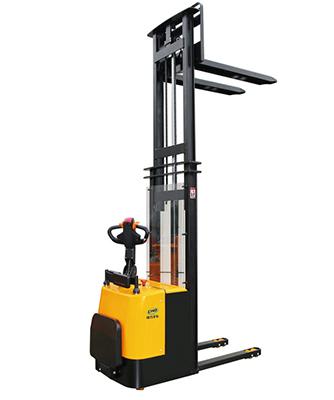

Electric Rider Pallet Stacker
The QDA-C electric pallet stacker is a riding unit that is easy to operate with responsive controls. With outstanding battery life, it can operate with high performance for long term applications.
Load capacity: 1.2T-1.5T
The maximum lifting height: 4500mm
Features
- The electric pallet stacker is equipped with 4 wheels for maximum safety and stability.
- H-type mast is made from high strength alloy steel with a stiffness 30% higher than that of carbon steel.
- High capacity sealed battery can be used for a long time without the need for any maintenance and it does not need added distilled water or other liquids throughout its service life.
- Continuously variable speed control unit meets the speed requirements of various warehouse and loading dock requirements.
- Reasonable layout of parts and circuit line facilitates easy maintenance.
Technical parameters
| Model | | QDA12C/QDA15C |
| Drive type | | Electric(battery) |
| Operator type | | Standing |
| Rated capacity | Q（kg） | 1200/1500 |
| Load center distance | c(mm) | 600 |
| Wheels | | Polyurethane wheel |
| Driving wheel size | | Φ210×70 |
| Balance wheel size | | Φ115×50 |
| Rear wheel size | | Φ80×70 |
| Lift height | h3(mm) | 2500/3000/3500/4500 |
| Free lift height | mm | 380 |
| Height, mast lowered | h1(mm) | 1740/1990/2240 |
| Height, mast extended | h4(mm) | 3050/3550/4050 |
| Height, fork lowered | h13(mm) | 90 |
| Overall length | I1（mm） | 2050 |
| Fork dimension | S/E/L（mm） | 60/170/1150 |
| Fork width | b5 | 570/685 |
| Min. ground clearance | m2(mm) | 50 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2900 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2840 |
| Max. gradeability, laden/unladen | % | 3/5 |
| Traveling brake | | Electromagnetic brake |
| Drive motor power | kW | 0.75 |
| Lift motor power | kW | 2 |
| Battery voltage/rated capacity | V/Ah | 24/160 |
| Battery weight | Kg | 190 |
| Steering mode | | Mechanical |
