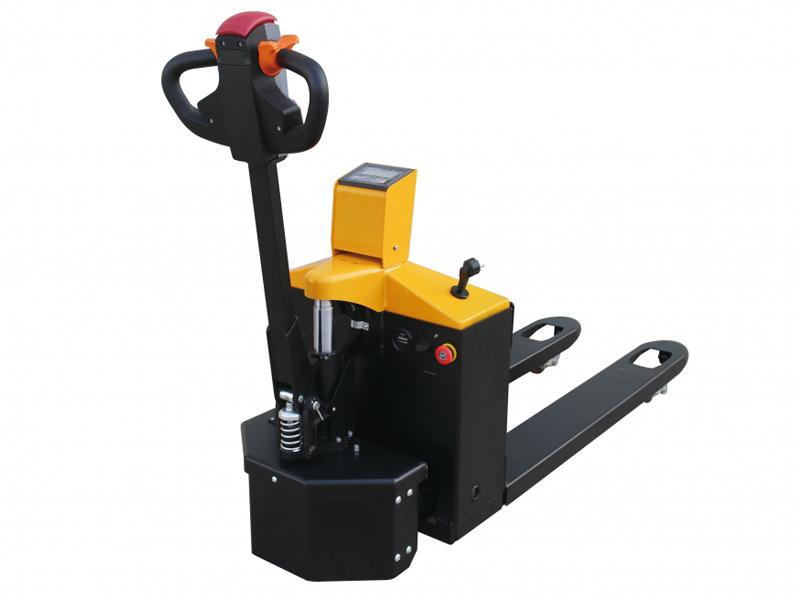

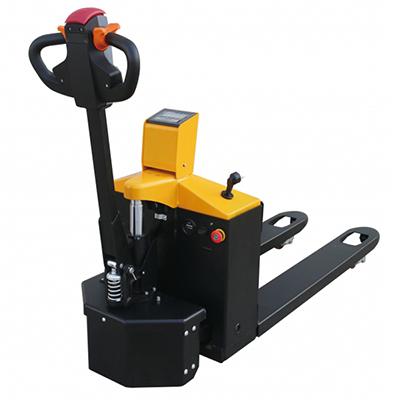

QBC15 Electric Pallet Jack

Operated by a high performance battery powered AC drive system, the QBC15 electric pallet jack carries out material handling jobs with outstanding efficiency, safety, and smoothness. The pallet jack is extremely easy to maneuver and offers incredible labor saving power.

Features

Convenient disassembly for easy maintenance.
The pallet fork is formed integrally offering high strength.
High capacity sealed battery can be used for long time without any maintenance and it does not require the addition of distilled water or other liquids throughout its service life.

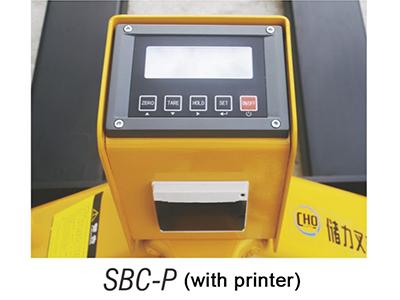

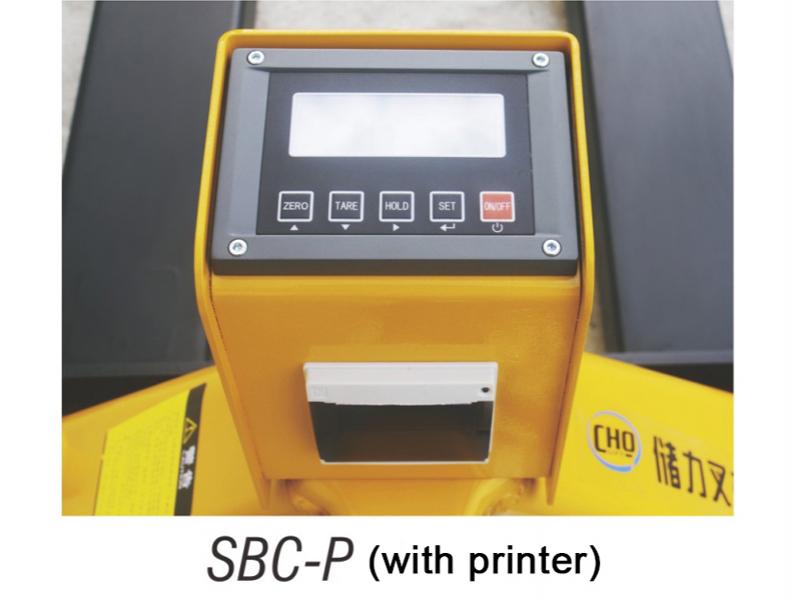

Optional matching weighing or printing function to meet the needs of different customers.

Technical parameters

Model	QBC15
Features	Rated capacity		Q(kg)	1500
	Load centre distance		c	500
Weight	Service weight including battery		kg	210
Wheel chassis	Wheel size	Steer wheel	mm	Φ210×70
		Load wheel	mm	Φ80×93/70	Φ74×93/70
	Wheel layout			Three-point support
	Tread, rear		b11（mm）	518
Dimension	Max. lift height		h3（mm）	195
	Height, fork lowered		h13（mm）	85/75
	Overall length		l1（mm）	1670
	Overall width		b1（mm）	680
	Fork dimension		s/e/l（mm）	53/160/1150
	Fork width		b5（mm）	550/685
	Turning radius		Wa（mm）	1470
	Height drawbar in driving position max./min.		h14（mm）	1220/680
Capability	Traveling speed, laden/unladen		Km/h	3.5/4
	Max. gradeability, laden/unladen		%	3/10
Motor	Drive motor power		kw	0.75
	Lift motor power		kw	0.8
	Battery voltage/rated capacity		V/Ah	24/75
