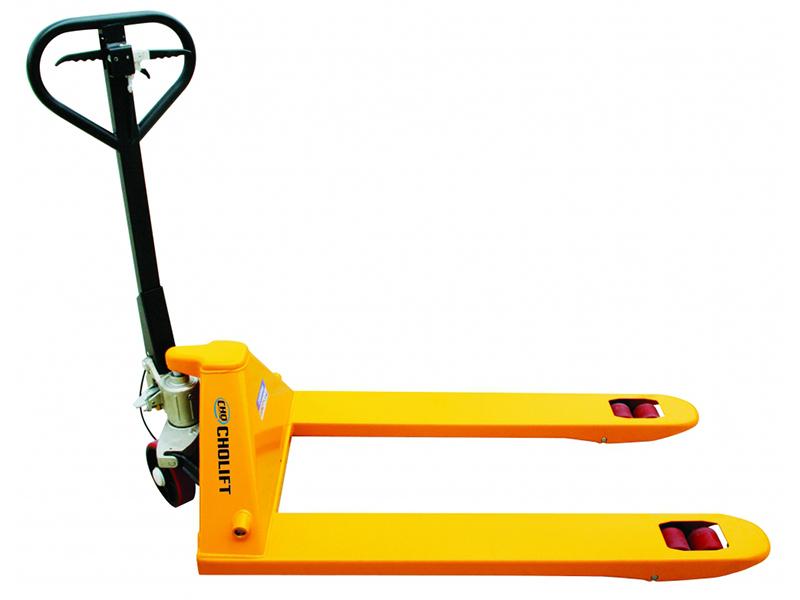

With an added braking system, pallet jacks with a hand brake will safely slow or stop, making them perfect for parking on a sloped angle. The maximum load capacity is 2.5T and the maximum lighting height is 190 or 200mm depending on customer requirements.
Features
- The Pallet Jack is equipped with a braking function for safer operation.
- The one piece cast hydraulic pump ensures there is no looseness and no leakage.

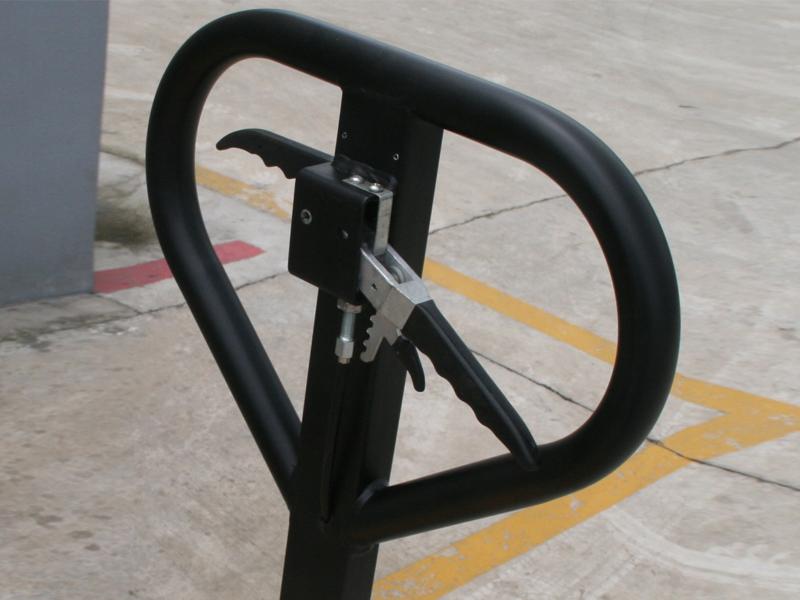

- The hand brake is suitable for a variety of environments, with a typical service life of 3 to 5 years.
- It is made of a high-strength alloy steel, ensuring a larger load capacity.
- Set an active safety valve to avoid overloaded use.
- The humanized design features a standard foot pedal and guide pulley for an easy operation, high efficiency, and lower labor intensity.
Technical parameters
Model | SBB |
Load capacity/rated load | Q(kg) | 2500 |
Load centre distance | c(mm) | 500 |
Net weight | kg | 70-80 |
Steer wheel size | mm | Φ180*50 |
Load wheel size | mm | Φ80*70/Φ74*70 |
Lifting height | h3(mm) | 200/190 |
Lowered height | h13(mm) | 85/75 |
Overall length | l1(mm) | 1534/1604 |
Fork dimensions | s/e/l | 54/160/1150 |
Distance between fork-arms | b 5(mm) | 520/550/685 |
Turning radius | Wa (mm) | 1249/1319 |
