Energy Efficient and Productive 3 Wheel Electric Forklift Trucks

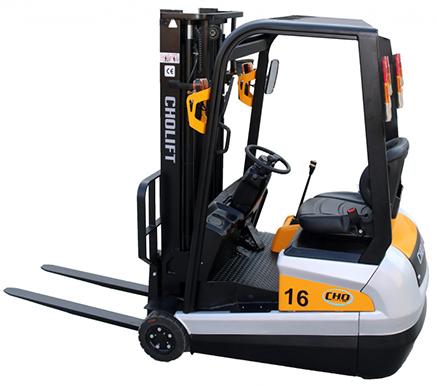

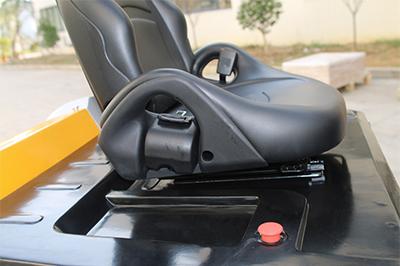

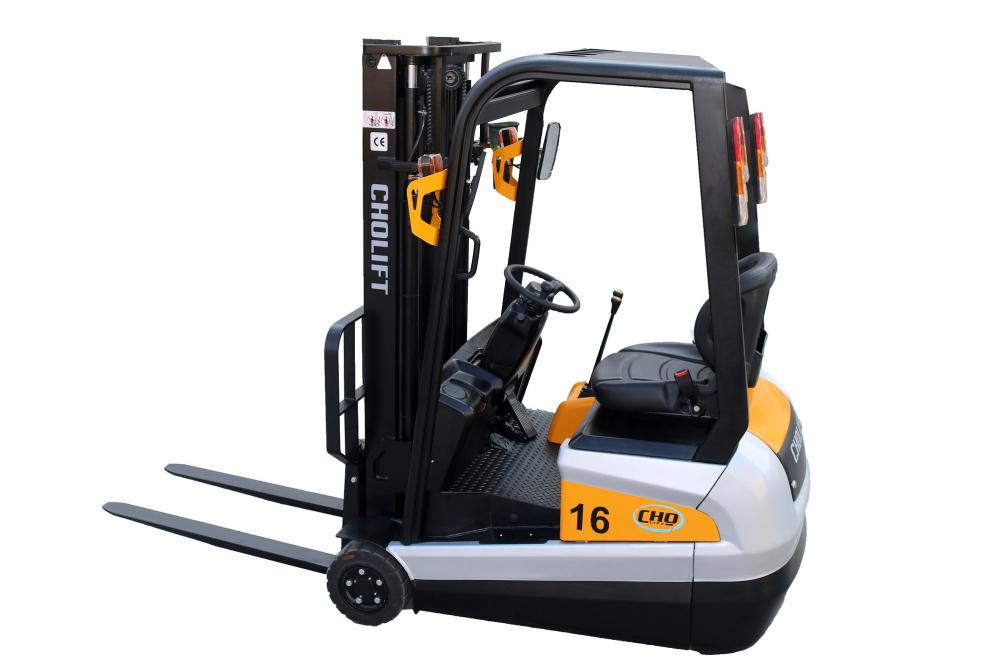

Our 3-wheel electric forklift operates with a power load capacity of 1.6T and the lifting height can be safely 5500mm. The design of the 3 wheel truck guarantees flexible handling thanks to its tight turning radius. A durable solid tire reduces the need for constant tire maintenance. A floating seat provides added comfort for operators due to its great cushioning effect. The AC drive improves the overall working efficiency of the forklift.

Optional components include a side shifter, large load battery, and various attachments to improve your truck’s performance.

Features

Safety
- The drive motor with transverse design enables greater accumulator capacity and a low forklift center of gravity.
- Our 3-wheel electric forklift is equipped with an emergency shut-off button whose role is to cut off entire power in case of an emergency.
Easy operation

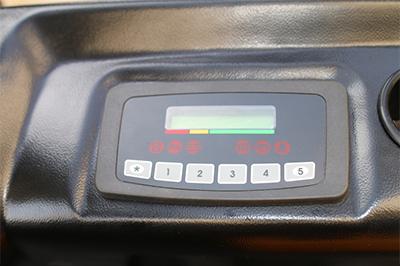

- Italian ZAPI display shows battery level, fault codes, and operating time. This is a vital tool for operation and maintenance.
- A forklift deceleration device automatically works when the goods descend 10 cm from the ground to ensure smooth landing and avoid the vibration.
High efficiency
- AC power increases the overall speed by 20%, nearly doubles the acceleration, and enhances working efficiency compared to other types of power units.

Technical parameters

Model		CPDS12	CPDS16		CPDS18
Drive		Electric
Rated capacity/rated load	Q(kg)	1200	1600		1800
Load center distance	C(mm)	500
Lift height	h3(mm)	3000
Free lift	h2(mm)	135	135		135
Mast/fork carriage tilt forward/backward	α/β(°)	4/5		3/5
Lowered mast height	h1(mm)	2012		2025
Overhead load guard height	h5(mm)	1966		2010
Ground clearance at centre of wheelbase	m1(mm)	86		90
Length to face of forks	l2(mm)	1640		1861
Overall width	b1(mm)	1070		1070
Fork dimensions	s/e/l(mm)	35x100x920		35x100x920
Fork width	mm	200/660		200/970
Load distance, centre of drive axle to fork	x(mm)	170		324
Turning radius	Wa(mm)	1495		1537
Extended mast height	h4(mm)	4047		4047
Aisle width for pallets 1000×1200 crossways	Ast(mm)	3010		3186
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3125		3308
Travel speed, laden	km/h	6.4		7.5
Travel speed, unladen	km/h	7.2		8.5
Lift speed, laden/unladen	mm/s	120/260		160/260
Drop speed, laden/unladen	mm/s	300/400		350/428
Max gradeability, laden	%	6		8
Max gradeability, unladen	%	10		12
Service brake		Electric
Steer wheel size		Φ305x145/2		18x7-8/2
Load wheel size		Φ250x120		Φ300x120
Track width, front	mm	910		891
Track width, rear	mm
Wheelbase	mm	1250			1240
Service weight including battery	kg	2075	2100		2736
Axle loading, laden front	kg	2665	3210		4036
Axle loading, laden rear	kg	610	490		500
Axle loading, unladen front	kg	815	820		1116
Axle loading, unladen rear	kg	1260	1280		1620
Drive motor	kw	2.2			3
Lift motor	kw	3.3			4.5
Battery voltage/nominal capacity K5	V/Ah	24V/320	24V/400		24V/460
Type of drive controls		AC			AC
Manufacturer of drive controls		ZAPI
Operating pressure for attachments	Mpa	16
