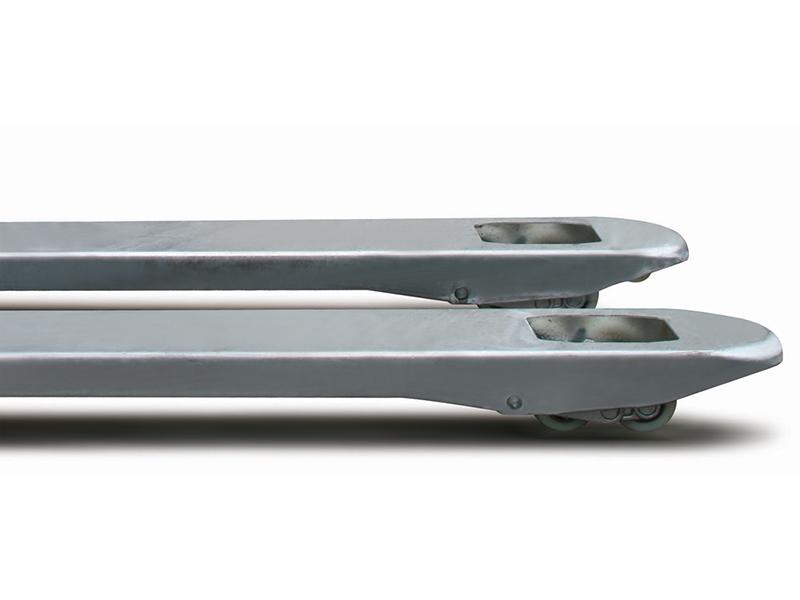

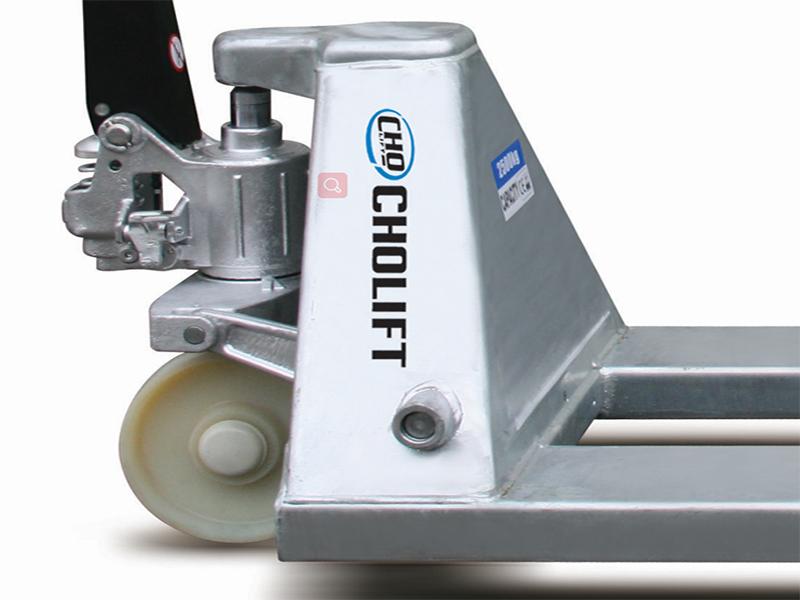

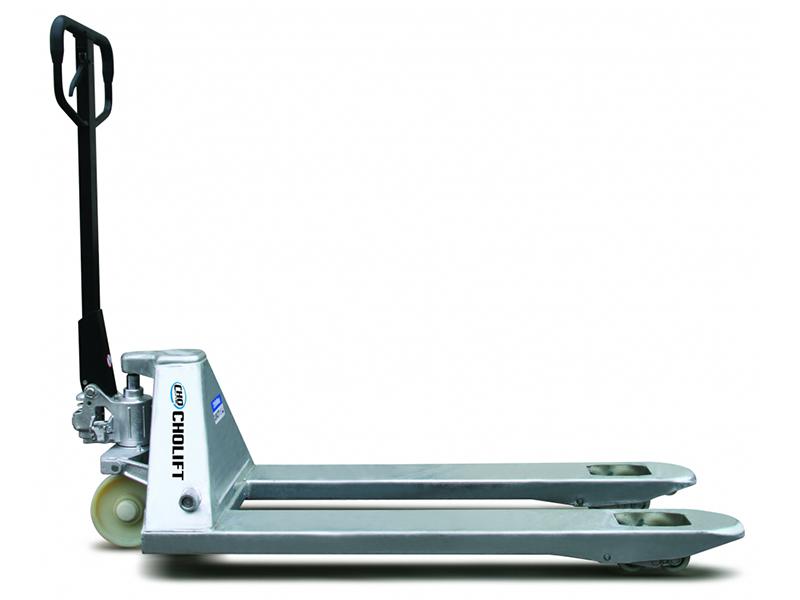

The galvanized pallet jack features a hot dip galvanized handle and galvanized frame, ensuring it is corrosion resistant, heat damage resistant, and chemical resistant, giving it a longer service life. It is ideal for use in chemical, fishing, and meat processing industries.
Model | SBA-G | ||
Load capacity/rated load | Q(kg) | 2500 | 3000 |
Load center distance | c(mm) | 500 | 500 |
Net weight | kg | 70-80 | 70-80 |
Steer wheel size | mm | Φ180*50 | Φ180*50 |
Load wheel size | mm | Φ80*70/Φ74*70 | Φ80*70/Φ74*70 |
Lifting height | h3(mm) | 200/190 | 200/190 |
Height of drawbar in driving position max./min. | h14(mm) | 1234/1224 | 1234/1224 |
Lowered height | h13(mm) | 85/75 | 85/75 |
Overall length | l1(mm) | 1534/1604 | 1534/1604 |
Fork dimensions | s/e/l | 54/160/1150 | 54/160/1150 |
Distance between fork-arms | b5(mm) | 520/550/685 | 520/550/685 |
Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1733/1803 | 1733/1803 |
Aisle width for pallets 800x1200 lengthways | Ast(mm) | 1783/1803 | 1783/1803 |
Turning radius | Wa(mm) | 1249/1319 | 1249/1319 |
