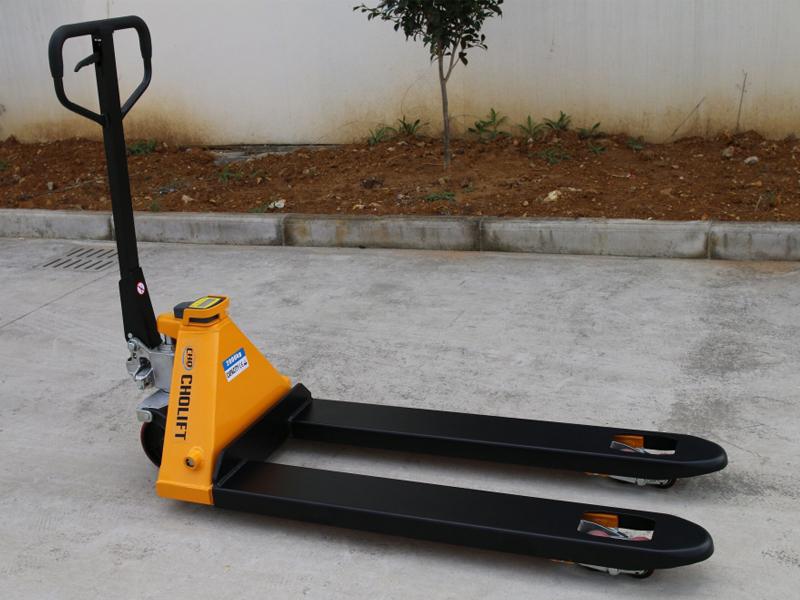

Pallet Jack with Scale

Home
Products
Pallet Jack
Pallet Jack With Scale

These pallet jacks feature built-in digital scales with easy to read backlit LCD display for weighing cargo loads in transit instead of waiting until they’re transferred to the platform scale. These pallet jacks are highly efficient, and are designed with wheels made of different materials, including rubber, polyurethane, and nylon.

Basic parameters

Load capacity: 2T
Fork width: 550mm, 680mm
Fork length: 1150mm

Features

Perfect weighing function: reset, peeling, calibration.
Built-in high precision sensor, the minimum index value: +- 0.1%

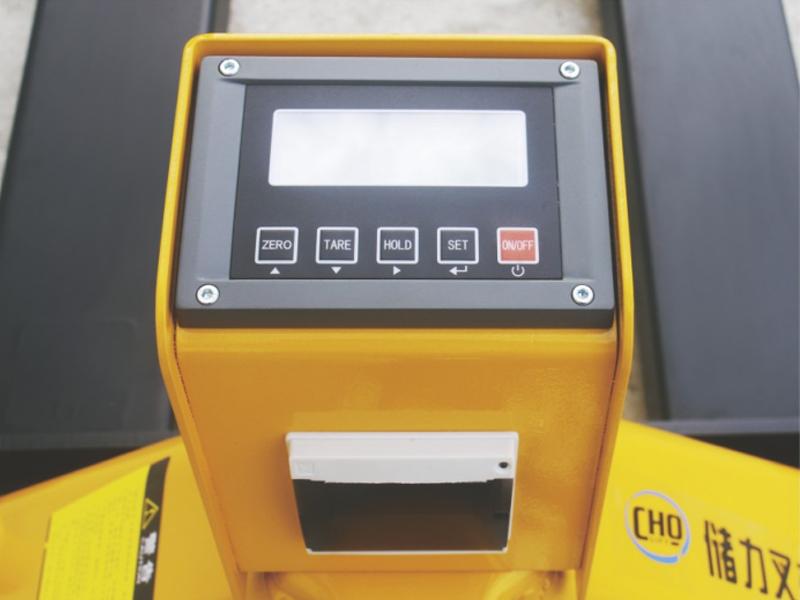

The LCD backlight display will automatically close, and shutdown time is easily set by the operators.
Optional matching printer.
Special oil cylinder design to guarantee the hydraulic system’s stability.
Low power consumption, long battery service life.

Technical parameters

SBC-E/SBC-P(with a printer)
Model	SBC-E	SBC-P
Load capacity	2000kg	2000kg
Steer wheel size	Φ180×50	Φ180×50
Load wheel size	Φ70×60	Φ70×60
Lifting height	190	190
Lowered height	80	80
Overall length	1561/1631	1561/1631
Scale width	550/680	550/680
Scale length	1150	1150
Turning radius	1365/1435	1365/1435
Battery	6V/2.5Ah	Three AA batteries
Height of drawbar in driving position max.	1200	1200
