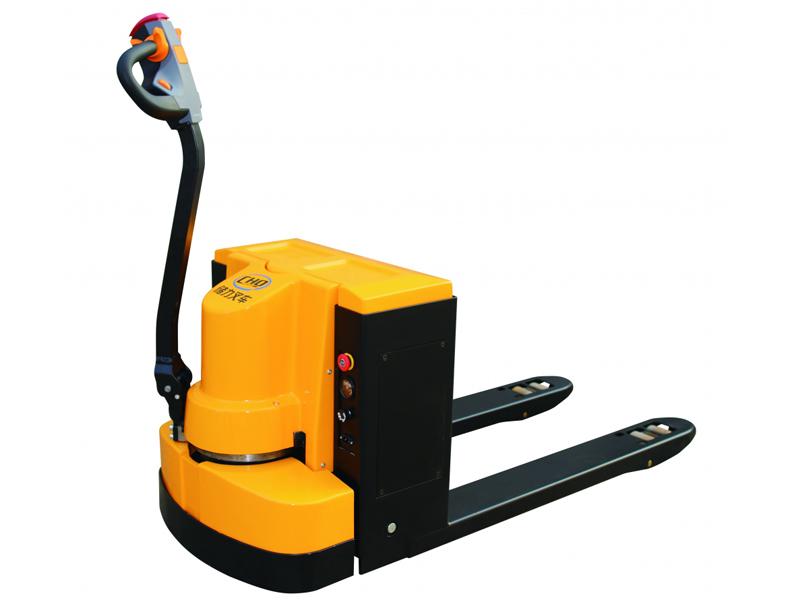

QBA20C Walkie Pallet Jacks
With Ac power and flexibility, walkie pallet jacks is ideal for materials handling in narrow space such as wharf and store. The max load capacity is 2T and the width*length specification of pallet fork can be 550*1150 mm or 685*1150mm.
Features
- More reasonable and creative structure design, independent compartments for hausing hydraulic pump and lithium-ion battery respectively.
- The pallet fork is formed integrally and has high strength.
- High capacity sealed battery can be used for long time without any maintenance and it doesn’t need to add distilled water or other liquid in its service life.
- Continuously variable speed control unit can meet the speed requirements of different driver.
Technical parameters
| Model | QBA20C | QBA25C | |||
| Features | Capacity | Q(kg) | 2000 | 2500 | |
| Load center | c | 500 | |||
| Weight | Service weight(with battery) | kg | 360 | ||
| Chassis and wheel | Wheel size | Steer wheel | mm | Φ250×75 | |
| Load wheel | mm | Φ80×70 | Φ74×70 | ||
| Wheel layout | Three-point support | ||||
| Rear wheel distance | b11（mm） | 525 | |||
| Size | Max. lift height | h3（mm） | 195 | ||
| Min. lift height | h13（mm） | 85/75 | |||
| Overall length | l1（mm） | 1710 | |||
| Overall width | b1（mm） | 685 | |||
| Single fork size | s/e/l（mm） | 57/160/1150 | |||
| Fork width | b5（mm） | 550/685 | |||
| Turning radius | Wa（mm） | 1510 | |||
| Handle max./ min. height | h14（mm） | 1220/680 | |||
| Performance | Move speed, load/ unload | Km/h | 3.5/4 | ||
| Grade ability, load/ unload | % | 3/10 | |||
| Brake | Electromagnetic brake | ||||
| Motor | Driving motor power | kw | 1.2 | ||
| Lifting motor power | kw | 0.8 | |||
| Battery voltage/ capacity | V/Ah | 24/120 | 24/135 | ||
| Battery weight | kg | 39.1×2 | |||
| Battery size(L*W*H) | mm | 406×176×233 | |||
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
