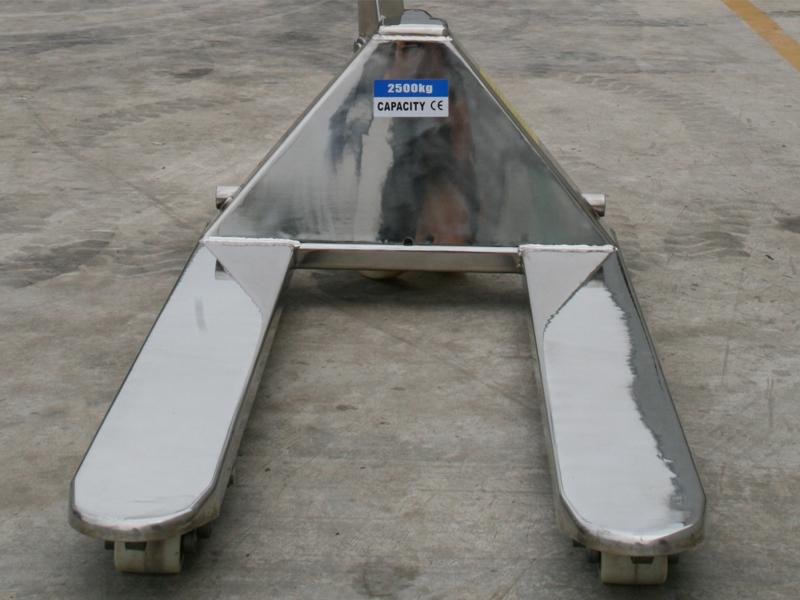

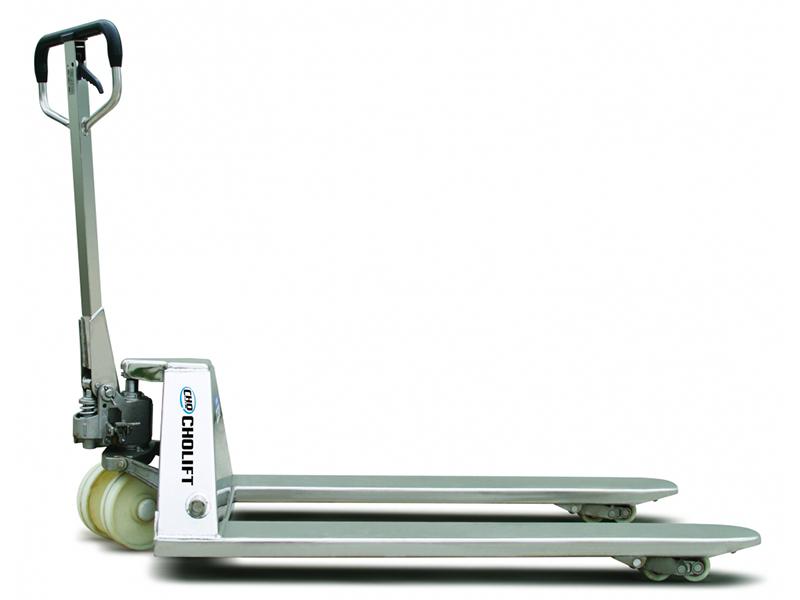

Stainless Steel Pallet Truck
Made using stainless steel, Cholift’s stainless steel pallet truck is specially designed for wet and corrosive environments and other applications with strict hygienic requirements, such as food processing, pharmaceutical, and marine industries.
Basic parameters
- Capacity: 2000kg
- Lift height: 200mm, 190mm
- Fork width: 685mm, 550mm
- Fork length: 1220mm, 1150mm
Features

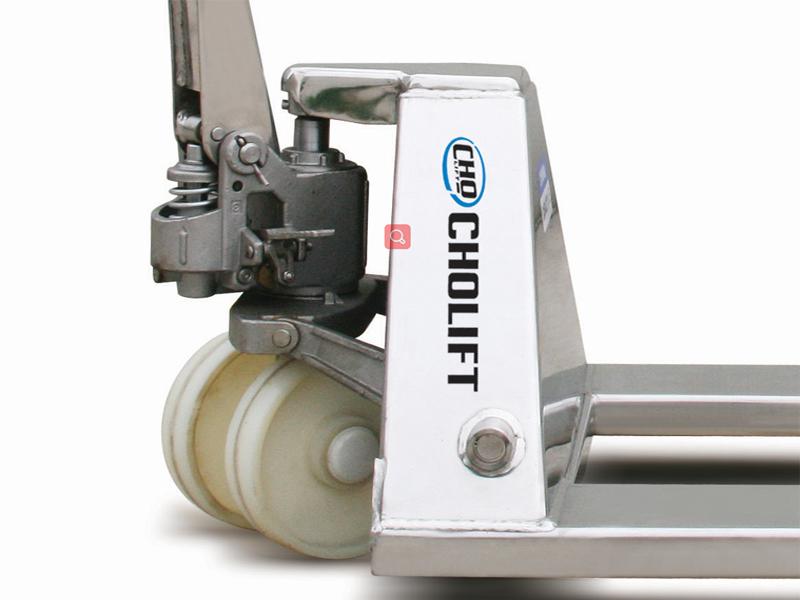

- The use of a one-piece cast hydraulic pump ensures no looseness and no leakage.
- This pallet truck is suitable for wet and corrosive environments such as food processing, pharmaceutical and marine industries.
- As it is made of a high strength alloy steel, it features a large load capacity.
- Set active safety valve to avoid the overload use.

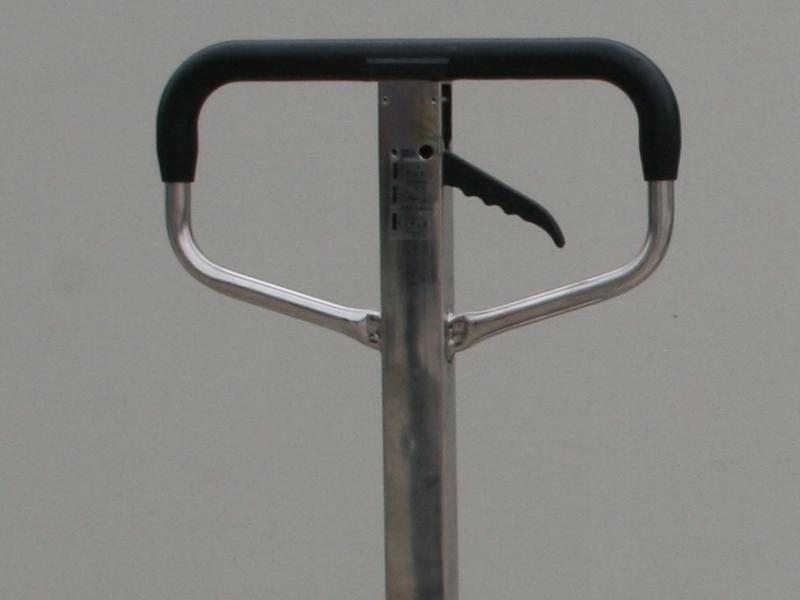

- The humanized design with a standard foot pedal and guide pulley ensures a highly efficient, easy operation and lower labor intensity.
Technical parameters
| Model | SBA-S | |
| Load capacity/rated load | Q(kg/lb) | 2000 |
| Load centre distance | C (mm/in) | 500 |
| load wheels | mm/in | Φ180×50 |
| Load wheel size (single) | mm/in | Φ80×93/74×93 |
| Load wheel size (tandem) | mm/in | Φ80×70/74×70 |
| Lifting height | h3(mm/in) | 200/190 |
| Lowered height | h13(mm/in) | 85/75 |
| Overall length | l1(mm/in) | 1534/1604 |
| Fork length | s/e/l | 54/160/1150(1220) |
| Distance between fork-arms | b5(mm) | 550/680 |
| Turning radius | Wa(mm) | 1249/1319 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
